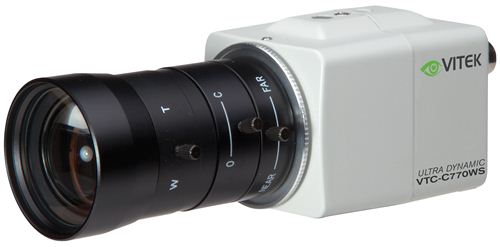

Vitek VTC-C770WS - Pixim Seawolf Powered WDR Color CCD Camera w/700TVL- Short Body (2.4inL) 12/24V- OSD (optional remote VT-UTCC). U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $420.00 Each




VTC-C770WS
VTC-C770WS
700 TVL Pixim Powered Ultra Dynamic Range Color CCD Camera

  • 700TVL High Resolution
  • Pixim D8800C Seawolf Digital Imaging System
  • 0.00008 Lux (F1.2@40IRE using sense-up)
  • Designed to fit in Pelco DF5 Housing
  • Supports C/CS mount DC Drive Lenses
  • Supports NTSC & PAL Standards
  • On Screen Display (OSD) Menu w/Optional Remote
  • 24VAC (245mA / 5.88VA) & 12VDC (300mA / 3.6W)
  • Lenses Sold Separately
Are you a CCTV Specialist working with or at a Casino? VITEK Industrial Video Products, Inc. is pleased to announce an extraordinary addition to our camera line. The VTC-C770WS was specifically designed and tuned to meet the challenging lighting and specialized demands of the casino environment. This Pixim Powered WDR Color CCD Camera with 700TVL has a compact design able to fit easily within a Pelco DF5 Housing. Advanced on screen display with optional UTC Remote and true ICR Day/Night functions are among its many other features.
VTC-C770WS Specifications:
Image Device 1/3” CMY Color DPS SENSOR (Pixim Seawolf D8800C Series)
Effective Pixels 768(H) x 540(V)
TV System NTSC - 525 Lines / 2:1 Interlace PAL - 625 Lines / 2:1 Interlace
Scan Frequency NTSC - 59.94Hz(V), 15.734Khz(H) PAL - 50Hz(V), 15.625Khz(H)
Synchronization Internal
H. Resolution 700TVL
Sensitivity 0.00008Lux (F1.2@40IRE using Sense Up)
S/N Ratio More than 50dB with AGC OFF at 50IRE
White Balance 2,000 - 11,000K Automatic Tracking
WDR Mode [Low/Middle/High/Custom (User Adjustment)]
Auto Iris Control DC Drive Iris Control. Level Control is fixed internally
SENSE-UP 2X, 4X, 8X, 16X, 32X, 64X ESS
Motion Detection On/Off (4 Programmable Zone)
D-PTZ Up to 12X Digital Zoom
FLIP Off / H-Flip / V-Flip / H/V-Flip
Privacy Zone On/Off (6 Programmable Zone)
Flicker Reduction Yes (NTSC Japanese Version Only)
OSD Language Yes (Setup Menu Only)
Video Output VBS 1Vpp +/- 10%, 75ohm
Lens Mount CS Mount
Operating Power 24VAC (245mA / 5.88VA) & 12VDC (300mA / 3.6W)
Operating Condition 14ºF - 122ºF (-10ºC - 50ºC) 85% RH. Max. Non-Condensing
Dimensions (W X H X L) 1.9in x 2in x 2.4in (48mm x 51nn x 60.5mm)
