VTC-IRE30/2810
Vitek
VTC-IRE30/2810

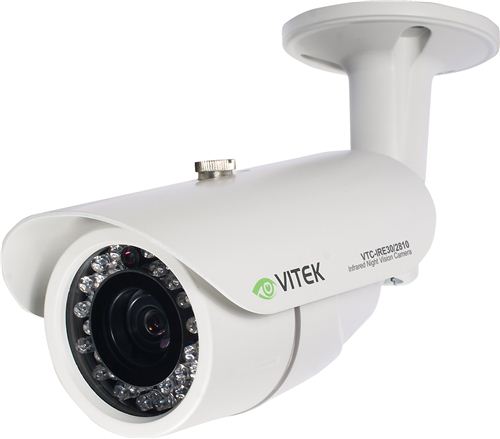

Vitek VTC-IRE30/2810 - Day/Night 700TVL IR bullet Camer w/100ft Range- 2.8-10mm- Feed Thru Mount-IP66. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $301.00 Each




VTC-IRE30/2810
VTC-IRE30/2810
Day/Night Infrared 700 TV Line Bullet Camera w/100’ Range

  • High Density 1/3” Sony EX-VIEW CCD & Effio-E DSP
  • 700 TV Lines of Resolution
  • E-WDR by Adaptive Tone Reproduction
  • 30 850nm Infrared LEDs with up to 100’ Range
  • 0.003 Lux (F1.2 @ 40IRE) / 0 Lux with IR LEDs On
  • IR Corrected 2.8-10mm Varifocal DC Auto Iris IR Lens
  • 2DNR Noise Reduction
  • Motion Detection, Privacy Masking & Highlight Masking
  • OSD (On Screen Display) menu and Camera ID
  • IP-66 Rated Water Resistance
  • Heavy Duty Mount with Cable Feed Through
  • 24VAC/12VDC Dual Voltage

VTC-IRE30/2810 Specifications:
Image Device 1/3” High Density Sony EX-VIEW CCD & Effio-E DSP (960H)
Resolution 700 TV lines
Minimum illumination 0.003Lux / F1.2 (0 Lux with IR LEDs ON)
Effective Pixels 976(H) x 494(V)
S/N Ratio More than 52dB with AGC OFF at 50IRE
Electronic Iris 1/60 to 1/100,000 sec.
Infrared LEDs 30 850nm IR LEDs
IR Distance Over 100 Feet
Day/Night Auto
Built-In Lens IR Corrected 2.8-10mm DC Auto Iris Lens
Iris Mode DC Drive Iris Control (Internally Fixed)
White Balance 1,800~10,500ºK Automatic Tracking
Gain Control Auto
Flicker Reduction Yes
Video Output VBS 1 Vpp +/- 10%, 75ohm
TV System 2:1 Interlace
Scan Frequency 59.94Hz(V), 15.734Khz(V)
Synchronization Internal/Line Lock (Default: Internal)
Light Compensation HLC (Highlight Compensation) / BLC (Backlight Compensation)
Noise Reduction 2DNR
E-WDR YES by ATR (Adaptive Tone Reproduction)
Motion Detection YES
Privacy Mask Up to 8 Programmable Mask Areas
OSD Language English, Japanese, German, French, Russian, Portuguese, Spanish
Water Resistance IP66
Construction Aluminum Housing
Power Source 12VDC/24VAC (Dual Voltage)
Power Consumption (12VDC) 110mA / 455mA (IR OFF/ON)
Power Consumption (24VAC) 120mA / 400mA (IR OFF/ON)
Operating Conditions -4ºF ~ 122ºF (-20ºC ~ 50ºC) / 85% RH Max
Length (Ceiling Mounted) Ceiling Mounted: 7.25" (184mm)
Length (Wall Mounted) 8.9" (226mm)
Width (Camera) Camera: 2.5" (64mm)
Width (Camera w/Sun Shield) 3.5" (89mm)
Height 4.5” (114mm) (Ceiling Mounted)
Weight 1.21 lbs (550g)
