VTD-AR2812/VB
Vitek
VTD-AR2812/VB

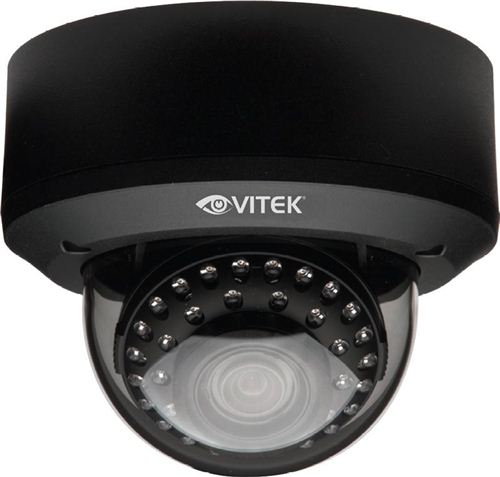

Vitek VTD-AR2812/VB - Alpha Series 620tvl Outdoor 2.8-12mm A/I Vari Vandal Dome w/WDR & 35 IR LEDs- OSD & Night Watch DSS Technology- Black. U/M: each
Arizona: Out of Stock
Vegas: Out of Stock
Out of Stock
Retail: $240.00 Each




VTD-AR2812/V
VTD-AR2812/V
Alpha Series Vandal Resistant High Resolution Infrared WDR Varifocal Dome Camera

  • 620 TV Lines of Resolution
  • Hercules DSP Engine
  • 1/3" Sony SuperHAD II CCD
  • 2.8~12mm IR Corrected DC Auto Iris Lens
  • Advanced OSD Functions: WDR, 3D DNR, Night Watch DSS Low Light Color Technology, DIS, Sens-up, Motion Detection, Privacy
  • 35 IR LEDS with 120' Range
  • Surface Mount with Wall VT-AV/WMT and Ceiling Mounts VT-AV/CMT available
  • IP68 Waterproof Rated
  • Secondary Video Output (Cable Included)
  • 3-Axis Mount for Optimum Viewing Angle
  • Dual Voltage 12VDC - IR Off: 120ma, IR On: 800ma / 24VAC - IR Off: 70ma, IR On: 500ma Operation
VTD-AR2812/V Specifications:
Image Sensor 1/3" Sony SuperHAD II CCD
Lines of Resolution 650 TV Lines
DSP (Digital Signal Processing) Hercules II DSP Engine
Minimum Illumination 0 Lux with IR LEDs On
IR LEDs (Built-In) 35 840nm LEDs
Standard Lens (Included) 2.8-12mm IR Corrected DC Auto Iris
OSD (On Screen Display) YES
WDR (Long and Short Exposure) YES
3D-DNR (3D Digital Noise Reduction) YES
NightWatch DSS YES
HLM (Highlight Masking) YES
Privacy Masking YES
Motion Detection YES
Digital Zoom YES
DIS (Digital Image Stabilizer) YES
Secondary Video Output YES (Cable Included)
Weather Resistance IP68
Input Voltage 12VDC / 24VAC (Dual Voltage)
Power Consumption* (12VDC) 120ma / 800ma (IR OFF/ON)
Power Consumption* (24VAC) 70ma / 500ma (IR OFF/ON)
Dimensions (Diameter x Height) 5.85“ x 4.75”
