VTD-MVP2810WDR
Vitek
VTD-MVP2810WDR

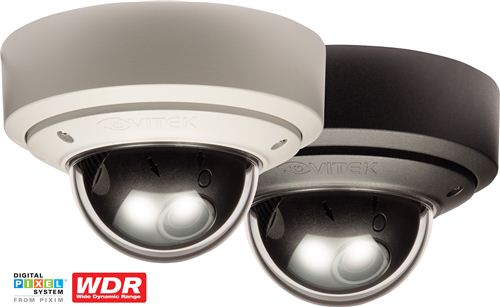

Vitek VTD-MVP2810WDR - Outdoor Vandal Proof Pixim Seawolf Powered WDR Mighty Dome 700TVL camer w/2.8-10mm Lens-OSD- Day Night w/ICR & Night Watch DSS-12VDC. U/M: each
Arizona: In Stock
Vegas: Special Order
Out of Stock
Retail: $567.00 Each




Vandal Proof WDR Mighty Dome Cameras
Vandal Proof WDR Mighty Dome Cameras
700 TV Line Day/Night Dome Camera Series

  • Pixim D8800C Seawolf Digital Imaging System CMOS
  • 700TVL High Resolution
  • WDR- Wide Dynamic Range
  • 3DNR - Three Dimensional Noise Reduction
  • Secondary Video Output (Cable Included)
  • OSD (On Screen Display) for Camera Function Setup
  • Flush or Surface Mount
  • Infinity Ball Mount for Any Viewing Angle
  • UTP Interface and Heater / Blower Options Available
  • UTC CONTROL - Serial Control over Coax
  • 1" Conduit Knockout
  • Vandal/Water Resistant IP 68 Rated
  • Optional - Extreme Cold (-60'F) Temperature Kit
  • Available in Ivory or Black Color
  • With Night Watch DSS Low Light Color Technology
  • Dual Voltage 12VDC & 24VAC
  • Available Configurations Include:
    VTD-MVP2810WDR - Outdoor Vandal Proof Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera w/2.8-10mm Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC

    VTD-MVP922WDR - Outdoor Vandal Proof Pixim Seawolf Powered WDR Mighty Dome 700TVL Camera w/9-22mm Lens, OSD, Day Night w/ICR and “Night Watch” DSS -12VDC/24VAC
Lighting conditions play a critical role in producing useable video images in a surveillance system. The Pixim- Powered WDR Vandal/Waterproof Dome Camera was created to meet and solve the challenges brought on by varying lighting conditions within a single capture area. By use of the PIXIM Seawolf Wide Dynamic Range DSP we are able to control and display clear, crisp images in varied lighting conditions more accurately than ever before. Its improved resolution of 700TV Lines is unequaled by any other WDR Surveillance camera. Advanced on screen display and True ICR Day/Night function are among the many other features which place this camera at the best in its class.
Vandal Proof WDR Mighty Dome Cameras Specifications:
Image Device Pixim D8800C Seawolf Digital Imaging System CMOS
Effective Pixels 758(H) x 540(V)
Scan Frequency NTSC - 59.94HZ(V), 15.734K HZ(H) PAL - 50HZ(V), 15.625KHZ(H)
Synchronization Internal / Line Lock (phase adjust)
H. Resolution 700TVL
Sensitivity 0.00008Lux at F1.2@40IRE, 32x (DSS+ICR mode)
S/N Ratio More than 52dB with AGC OFF at 50IRE
White Balance 2,000 ~ 11,000’K Automatic tracking / AWB / MANUAL
WDR Mode [Low / Middle / High / Custom (User adjustment)]
Motion Detection On / Off (4 Programmable Zone)
Digital Zoom Up to X12 Digital Zoom
FLIP OFF / H-FLIP / V-FLIP / H/V-FLIP
Privacy Zone On / Off (6 Programmable Zone)
Auto Iris Control DC Drive Iris Control
SLOW SHUTTER 2 ~ 32X
Day & Night Infrared Cut-Filter Removable built-in
IP Rating IP68
Lens Options F1.2 2.8~10mm DC Auto Iris IR Corrected ICR / F1.8 9~22mm DC Auto Iris IR Corrected ICR
Video Output VBS 1 Vpp +/- 10%, 75ohm
Operating Power 12VDC / 24VAC 3 Watts / 220 mAmp
Operating Condition -4ºF ~ 122ºF / -20ºC ~ 50ºC, 85% RH. Max. Non-condensing - Optional Extreme Weather Heater for -60’F
Dimensions (H x Dia.) 4.45” x 6.73” (110mm x 170mm)
Weight (Camera) 2.3 lb / 1.04Kg
Weight (Carton) 2.9lb / 1.32Kg
