AT-COMP150SR

ATLONA COMPONENT VIDEO WITH 2 CHANNEL MONO AUDIO EXTENDER 600 FT. (TRANSMITTER & RECEIVER)

Atlona Technologies AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS) video with 2 channel mono audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals to cover the distance up to 330m (1,000ft). The AT-COMP150SR is composed of a transmitter and a receiver which are both included

ATLONA COMPONENT VIDEO WITH 2 CHANNEL MONO AUDIO EXTENDER

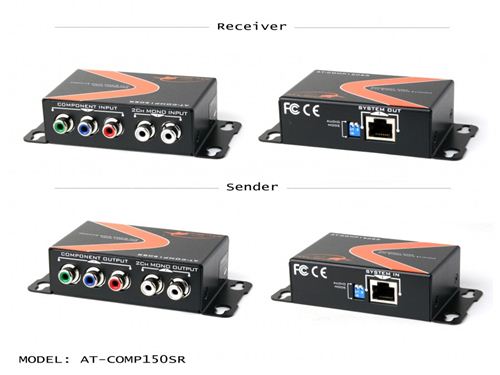

MODEL: AT-COMP150SR

Atlona Technologies AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS) video with 2 channel mono audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals to cover the distance up to 330m (1,000ft). The devices are composed of a transmitter and a receiver. The transmitter is installed near the video signal source, and the receiver is placed near the desired display, up to an impressive 330m (1,000ft) away for composite (CVBS) video and analog stereo audio. The AT-COMP150SR does not need a external power supply which is easier for installation..

Features:

• Passive and no power required
• Supports component (YPbPr) and composite (CVBS) video and 2 channel mono audio
• Supports resolutions up to 720p/1080i (NTSC/PAL)
• Transmission range up to 1,000 feet
• Wall mountable

Technical Specifications:

• Supported Resolutions: Up to 720p60, 1080i60, 1080p30
• Supported Audio: 2 channel mono analog audio
• Transmission: HD 720p/1080i – 185m (600ft), 480i – 330m (1,000ft)
• Sender Input: 5x RCA
• Sender Output: 1x RJ45
• Receiver Input: 1x RJ45
• Receiver Output: 5x RCA
• RCA Connector: 75Ω female
• Dimensions (LxWxH): 2.1" x 3.3" x 1"
• Weight: 6oz
• Power Supply: None

Package Includes:

• 1x AT-COMP150SR (Sender unit and Receiver unit)
• 1x User's manual

Warranty:

• 3 year manufacturer (parts and labor)
