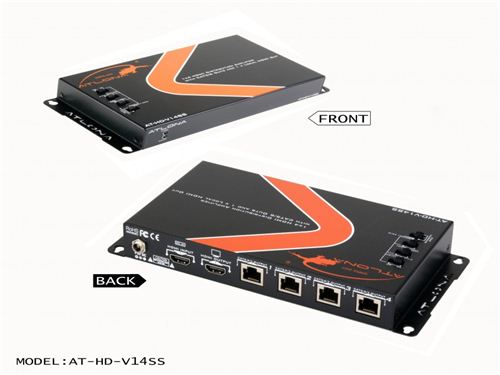

Atlona 1X4 HDMI Splitter with CAT5/6 Outputs and Local HDMI output with 3D support. (TRANSMITTER ONLY). Model: AT-HD-V14SS

The Atlona 1x4 HDMI splitter is the perfect solution for those who want to display a single source on 4 or more displays using a Single Twisted Pair Cat5 or Cat6 Cable. AT-HD-V14SS is capable of extending up to 130ft at 1080p.

Note: A receiver unit (Balun) is required for each display and sold separately (Model: AT-HDRS, AT-HD15SRS or AT-HD50RSL). For longer runs use the AT-HDRP for up to an additional 130ft at 1080p.

Products Features

• HDMI over Single Cat5/6 (High Resolution Audio and Video)
• Local HDMI Output for a local display or to chain to another Distribution Amplifier
• Full 3D support
• HDCP compliant
• Supports 5.1 and 7.1 Digital Audio
• Silicon Image Chip-Sets allow 99.99% compatibility with all the AV gear (we only use Best)
• Built-In HDMI Repeater to avoid any signal loss if long input cable is used
• Supports default HDMI EDID and records the EDID of each display
• Extends up to 40m (130ft @ 1080p) of output single CAT5 or Cat6 cable
• Wall-Mountable
• Easy installation
• Compatible with the AT-HDRP for those extra long runs

Technical Specifications:

• Video Bandwidth: 6.75 Gbps
• Resolutions up to 1080p or 1920x1200
• Power: 5V DC (110/240v) locking
• Input: 1 x HDMI
• Outputs: 4 x RJ45; 1 x HDMI Loop Out
• Dimensions:
• Shipping Weight: 3 lbs.

Package Contents:

• 1x AT-HD-V14SS
• 1x 5V power adapter (110/240v) locking
• 1 x User Manual
