4x1 ATLONA HDMI + DIGITAL AUDIO SWITCH (HDMI 1.3) with 3D Support
DISCONTINUED AND REPLACED WITH AT-HD4-V41
Atlona AT-HD41D is a high performance HDMI 1.3 switcher with remote. High resolution up to 1080p without signal degradation. It's capable of switching digital audio (optical/coaxial) in addition to HDMI.
DISCONTINUED AND REPLACED WITH AT-HD4-V41

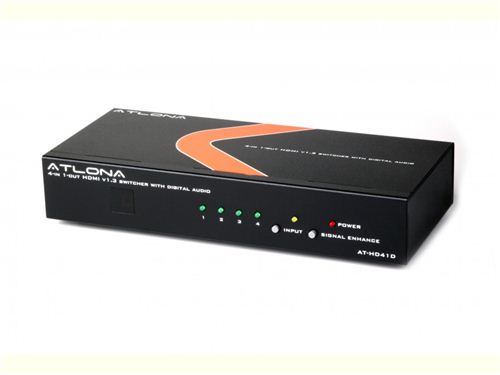

4x1 Atlona HDMI w/ Digital Audio Switch (HDMI 1.3) with 3D Support. Model: AT-HD41D
Atlona AT-HD41D is a high performance HDMI 1.3 switcher with remote. Simply press a button on the remote to select an HDMI source and it will be routed to a high definition display. It supports resolution of up to 1080p without signal degradation. A key advantage of this switcher is that you can route digital audio through it as well making it much easier to integrate with a receiver that doesn't support HDMI inputs. With a click of a button you can instantly switch HDMI video plus digital audio. This simple advantage will make you life much easier with only 2 cables outputing the switch, one to the TV and another to an audio receiver.
An HDMI repeater is built into the switch for extended distance cable runs. An ordinary switch might reveal some video degradation after 30ft; however the AT-HD41D signal is amplified to go over 60ft.
Note: OPTIONAL POWER OVER USB SOLUTION NOW AVAILABLE FOR THIS ITEM!! AT-PWUSB
User Instructions:
Installs in seconds. Connect all the digital video sources to any of the inputs on the switch and connect the output cable to the hdtv display. Use a remote control or buttons on the front panel to switch video inputs. We recommend to use high quality HDMI cables for the best signal transfer.
Inputs and Outputs:
- 4 x HDMI Inputs
- 4 x Optical Inputs
- 4 x Digital Coaxial Inputs
- 1 x HDMI Output
- 1 x Optical Output
- 1 x Digital Coaxial Output
Package Includes:
- Atlona 4:1 HDMI 1.3 Switcher w/Digital Audio
- IR Remote control
- 5V Universal Power Supply
- User's Manual
Features:
- 3D Capable
- Supports high resolution input: up to 1080p or 1920x1200
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
- Supports 30/36/48 bit color depth display
- Supports High Definition audio - Dolby Digital TrueHD and DTS-HD Master Audio
- The unit has the function of Signal Enhancer to improve signal quality after long distance transmission.
- Ideal for home theater integration.
- Remote control.
- RS232 input for connecting to control system
- Easy to install and simple to operate.
Specifications:
- Frequency bandwidth: 2.25Gbps (single link)
- HDMI Standard: HDMI 1.3
- Inputs: 4 x HDMI female ports (Type A connector), 4x Optical, 4 x SPDIF
- Max. Resolution: 1080p or 1920x1200
- Power Supply: 5V DC Universal 110/220
- Dimensions: 9 1/2” W x 4 1/2” D x 2” H
- Weight: 5LB
