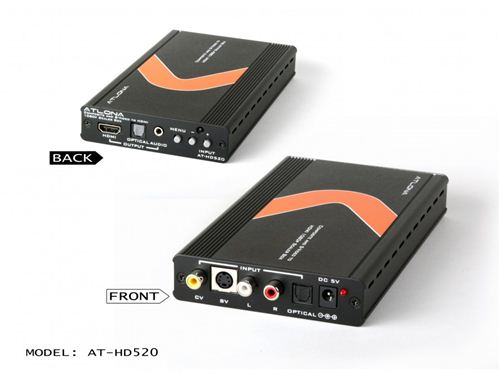

Atlona Video / S-Video + Audio to HDMI Converter Scaler. Model: AT-HD520

The Atlona AT-HD520 is designed to upscale analog video signal from Composite or S-Video input sources to digital HDMI output with wide-range of HDTV and PC resolutions; up to 1080p. This converter takes analog and digital audio and encodes it onto the HDMI output along with video for the complete HDMI audio and video high definition experience. Scaler has a comprehensive on-screen menu that allows user to select a variety of output resolutions and adjust picture settings.
The Atlona Scaler is also capable of converting Pal to NTSC or NTSC to Pal.

Features:

• Pal/NTSC Conversion and scaling
• Supports HDTV Resolutions up to 1080p
• Supports PC Resolutions up to 1920x1200
• Supports 50Hz to 60Hz frame rate conversion
• Supports 3-D motion video adaptive, 3-D de-interlacing and 3:2/2:2 pull down detection
• Video quality improvement:
• Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color
  tone) level and aspect ratio size.
• Black level extension.
• OSD menu for picture quality adjustment.
• IR remote control.
• Automatic NTSC/PAL video format detection and switching.

Technical Specifications:

• Input ports 1 x Composite Video; 1 x S-Video, 1 x Analog Audio, 1 x Optical (Toslink)
• Output ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber)
• Supports high resolution output:
• HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p ( 50/60Hz )
• PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.
• Pal/NTSC Audio Detection and conversion
• Power Supply 5V/2.6A DC ( Universal 110/220v )
• IR Remote Control
• Dimensions (mm) 187(D) x 102(W) x 25(H) / (inch) 5"W x 1"H x 3.5"D
• Net Weight: 2LB / Gross Weight 3LB

Package Contents:

• AT-HD520 (Analog to HDMI Scaler)
• 5VDC Power Supply Adaptor (110/220v)
• Operation Manual
• IR Remote control
