CP-SF
Cool Components CP-SF Signal Fan Cooling Unit (Req's 300mA Power Supply) U/M: each
Arizona: In Stock
Vegas: In Stock
Out of Stock

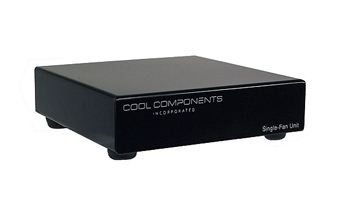

Use to Cool Smaller Components such as Non-HD Cable & Satellite Receivers

This unit circulates air away from components protecting equipment from heat accumulations and failures. The unit is simply placed on top of a component and is ideal for standard (non-HD) cable and satellite receivers or some larger components in less demanding situations. The Single Fan Unit is ideal when heat is a concern but does not reach extreme temperatures (for more aggressive cooling, use the Dual Fan Unit). The heavy gauge steel construction not only provides a nice appearance and is extremely durable, it also acts as a large heat sink increasing the efficiency of the unit. This unit features a top-quality levitation blower that is mounted using a floating gasket which eliminates noise caused by normal vibrations. The unit operates on DC voltage and by adjusting the voltage can be run silent or more aggressively depending on the application.

     Features



  • Quiet & Efficient Operation
  • Effectively Circulates Air Around Components
  • Aesthetically Pleasing - Matches Components in Design
  • Quick and Easy Installation
  • Sleek and Low Profile Size Allows for Placement in Tight Spaces (Place on components in a Rack or Entertainment Center)
  • Uses Variable Voltage Power Supply to Adjust Fan Speed. This allows the unit to be run more aggressively, if installed in an enclosed cabinet or closet, or silently if necessary.
  • Compatible with the Temperature Controllers (TC- BSC, TC-ALT & TC-AC)



General Specifications

Dimensions:              W - 4 x D - 4 x H - 1 1/4 (10cm x 10 x 3.18)
Construction:             Heavy Gauge Steel (Powder Coated Semi Gloss Black)
Cooling System:        1 Brushless Magnetic Levitation Blower (Est. 50,000 hrs.)
Air Flow:                   4 CFM
Noise:                       Silent to ~20 dba (Max)

Power Specifications

Multiple Units Can Be Powered with a Single PS-300 Power Supply

Connection:           2.1mm Coax Plug w/2-Pin FastWire Power System (Ensure proper polarity)
Voltage:                5 to 9V DC for Normal Operation or 9 to 12V for More Aggressive Cooling
Current:                 40 milliamps at 12V
