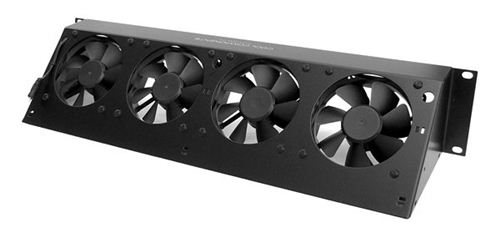

This is a very aggressive, universal cooling and venting unit. This unit can be used as a spot cooler or for various rack applications as it allows for advanced and unique applications. It features four top-quality fans that are mounted using special mounting hardware which eliminates noise caused by normal fan vibrations. The unit operates on DC voltage and by adjusting the voltage, the unit can be run silently or more aggressively depending on the application. The fans can also be reversed and the unit oriented to blow air upward or downward. This unit is ideal for a variety of applications including rack mounting, mounting inside cabinets, behind recessed TVs, etc.

• Professionally Engineered To Quietly & Aggressively Cool in a Variety of Applications
• Universal Rack Applications: Intake or Exhaust Racks, Spot Cool, Attach to Front or Rear Rails
• Can be Installed Behind Any Standard 2RU Faceplate
• Less than 3.5 in Height and only 2RUs
• Specialty Fans: 4 Specially Manufactured 92mm Magnetic Levitation Fans for Longer Life
• Fans Mounted Using Specialty Mounting System to Absorb Fan Vibration for Quieter Operation
• Fans Easily Reversible for Directing Air Up or Down Depending on the Application
• Uses Variable Voltage Power Supply to Adjust Fan Speed
• Compatible with all Cool Components Temperature Controllers

General Specifications

Dimensions:                   W - 19" x H - 3.5" x D - 5" (48cm x 9 x 13)

Construction:                  Heavy Gauge Steel (Painted Black)

Cooling System:             4 Brushless 92mm Magnetic Levitation Fans (Est. 50,000 hrs.)

Air Flow:                        ^~100^W-CFM-260^M-CFM

Noise:                            Dependent on Power Setting (Can be run quietly)

Power Specifications

Includes PS-1000 Power Supply

Power Connection:          2-Pin FastWire Power System (Ensure Proper Polarity - Tip to +)

Voltage:                         7 to 9V DC for Normal Operation or 9 to 12V for More Aggressive Cooling

Current:                         800mA at 12V DC



---



Cover for Unit (CP-UC2-CVR) - This is to enclose the top of the unit so air is completely 'channeled' through the front of the unit.  The most appropriate application would be for racks where the unit is primarily being used to exhaust hot air.  The unit may need to be run at a lower speed with the cover installed as noise level may increase.
