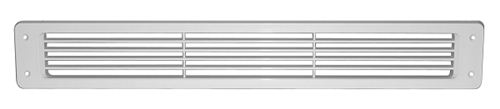

This grill matches the Cabinet Toe Grill and is perfect for mounting into cabinet toe kicks or doors and cabinets where a narrow grill is desired.

• Easily and Economically Add Passive Cooling to a Cabinet
• For Use in Toe Kicks or Anywhere where a Narrow Grill is Needed
• Includes Painted Screws

General Specifications



Dimensions - Grill Face:     2 5/8" x 17.5" (6.7cm x 44.5cm)

Dimensions - Depth:          ~1/2" (13mm)

Mounting Hole:                  2" x 15.5" (5cm x 39cm)

Mounting Type:                 Insert Mount (Grill body extends into the cabinet)

Material:                           ABS Plastic - Smooth

Colors:                             Black & White (Wood versions available - see other product listings)



Installation

1. Determine the location for the grill ensuring that there will not be any obstructions inside the cabinet.
2. Cut a 2" x 15.5" (5cm x 39cm) opening in the cabinet - using a jig saw for 'accessible' cuts or a saws-all may work best for tight working conditions.  This opening size allows for a little 'play'.
3. Using the grill as a template, place it in the cut out and mark the 4 screw holes and pre-drill those with a small drill bit (smaller than the screws).
4. Screw grill to the cabinet.
