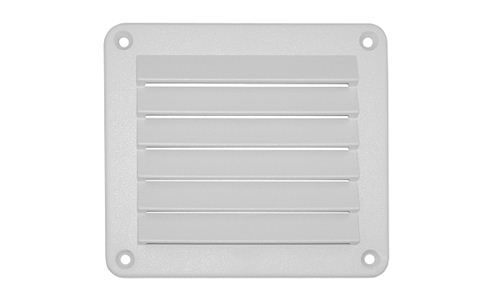

This grill matches the HiFlo Lite Fan Units and is perfect for mating with the fan units for added airflow or for simply increasing natural airflow.

• Easily and Economically Add Passive Cooling to a Cabinet or Other Area
• Surface Mounted for Easy Installation
• Includes Painted Screws

General Specifications



Dimensions - Grill Face:    5.5" W x 5" H (14cm x 12.7cm)

Vent Hole Size:                4" W x 3.5" H (10cm x 9cm)

Mounting Type:                Surface Mount (Mounts on top of surface)

Material:                          ABS Plastic - Smooth

Colors:                            Black, White, & Tan (Wood versions available - see other product listings)



Installation

1. Determine the location for the grill ensuring that there will not be any obstructions inside the cabinet.
2. Cut a maximum hole size of 4" W x 3.5" H (10cm x 9cm) opening in the cabinet - using a jig saw would be most appropriate.
3. Using the grill as a template, mark the 4 screw holes and pre-drill those with a small drill bit (smaller than the screws).
4. Screw grill to the cabinet.
