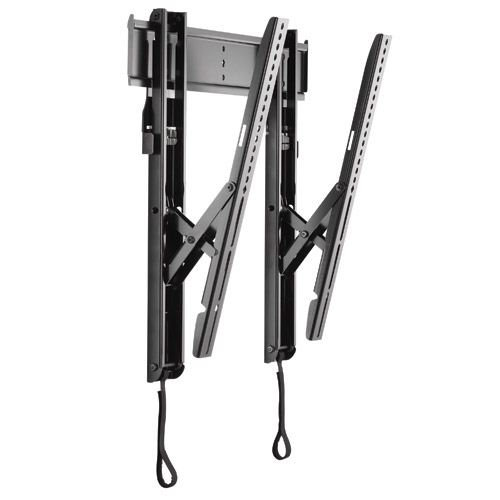

Chief MTTU

Medium THINSTALL™ Tilt Wall Mount

The MTT is one of the world's thinnest universal tilt wall mounts.

Low-profile design compliments the new ultra-thin flat panel TVs

Features

• Designed specifically for and only compatible with new ultra-thin TVs 2” (51 mm) deep or less
• Ultra low-profile design compliments ultra-thin flat panel TVs
• Provides 12° of smooth, fingertip tilt
• GlideLock provides tool-less latching for faster installation
• Consists of one-piece steel bracket with two tilting interfaces
• Each interface includes a sliding flat for increased security
• Features a cable stand and bottom pullout for cable access
• Provides lateral shift for increased flexibility
• Can be installed in landscape mode only

NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation

Specifications

• Certifications: UL Listed
• Color: Black
• Lateral Shift: Depends on mounting pattern of screen
• Maximum Screen Thickness: 2" (51 mm)
• Minimum Depth: 0.75" (19.1mm)
• Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm
• Orientation: Landscape
• Overall Dimensions (H x W x D): 17.6" x 27.8" x 0.8" (448 x 706 x 19mm)
• Shipping Weight: 12.55 lbs
• Solution Type: Universal
• Tilt: + 0° , - 12°
• Typical Screen Sizes: 26 - 47"
• Wall Stud Compatibility (inches): 16
• Weight Capacity: 100 lbs (45.4kg)
