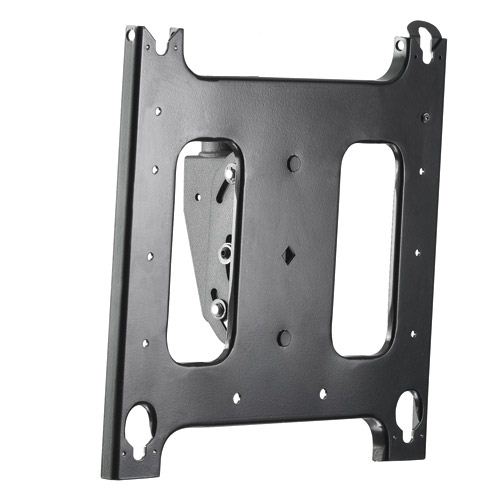

Chief PCSU

Large Flat Panel Ceiling Mount

This mount provides hassle-free installation for a ceiling-mounted flat panel TV.

• Great for digital signage installations
• Ceiling plate and extension column (Adjustable and Fixed) are required and must be ordered separately
• PCSU includes universal interface (PSBU), PCS2000B requires custom interface bracket to be purchased separately.

This mount has OSHPD pre-approval.

Features

• Centris Technology provides effortless, fingertip tilt adjustments
• ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
• Optional security with the addition of a padlock (not included)
• Post-installation leveling without tools
• Cable management through extension column
• Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Specifications

• Certifications: UL Listed
• Color: Black
• Mounting Pattern Compatibility (Universal Versions): 200 x 200mm - 862 x 517mm
• Orientation: Landscape, Portrait
• Overall Dimensions (H x W x D): 17.1" x 16.2" x 4.2" (434 x 411 x 107mm)
• Post-Installation Leveling (Roll): Yes
• Shipping Weight: 25.00 lbs
• Solution Type: Universal
• Tilt: + 5° , - 20°
• Typical Screen Sizes: 42 - 71"
• Weight Capacity: 200 lbs (90.7kg)
