PK-CV1-BLK
Cool Components
PK-CV1-BLK
Cool Components PK-CV1-BLK Cabinet Vent Package 1- Black U/M: each
Arizona: In Stock
Vegas: In Stock
Out of Stock


 This package is appropriate if you need two vents running simultaneously in your system

This package can be used to either exhaust double the amount of air or to setup a 'push/pull' configuration. This would involve using one unit to pull air out (exhaust) and the other to push air in (intake). If using this configuration, the exhaust vent should be mounted high while the intake vent is mounted lower in the cabinet. It is usually preferable to have both vents pulling air out as fresh air will come in through even the smallest of openings around doors or through wiring holes, etc.

      Features
  • Complete Package for Easy Ordering
  • Double the Ventilation or Create 'Push/Pull' Configuration
  • Saves Space by Consolidating Power Supplies
  • Compatible with the Temperature Controllers (TC- BSC, TC-ALT & TC-AC)

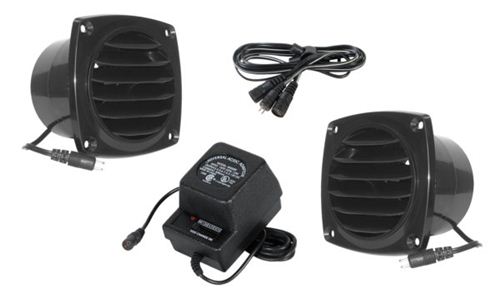

Package Includes

2 - Cabinet Vents (VS-CV)
1 - PS-300 Power Supply (PS-300)
1 - Long Lead Power Y-Cable (PA-YC-LL)



Specifications for Each Cabinet Vent

Dimensions:               W - 3 5/8” x H - 3 5/8” x D - 2 5/8” (9.2cm x 9.2 x 6.7)
Construction:              PVC w/ Gloss Finish (Black, White & Tan)
Cooling System:         50mm x 15mm Brushless Magnetic Levitation Fan (Est. 50,000 hrs.)
Air Flow:                    10.2 CFM (Max)
Noise:                        Silent to ~22 dba (Max)
Req’d Hole Size:         3 1/8” or 3 1/4" (80mm) (Max)

Power Specifications

Multiple Units Can Be Powered with a Single PS-300 Power Supply

Connection:           2-Pin FastWire System (Ensure proper polarity - Tip to +)
Voltage:                5 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling
Current:                 40 milliamps at 12V DC
