This is simply a package consisting of a combination of products. For information on the individual products, see the product pages for the items that are included with the package (see list below).
This package is appropriate if you need two vents running simultaneously in your system. Buying in packages adds convenience and ensures that everything is included (except temperature controllers or other options if desired). This package can be used to either exhaust double the amount of air or to setup a 'push/pull' configuration. This would involve using one unit to pull air out (exhaust) and the other to push air in (intake). If using this configuration, the exhaust vent should be mounted high while the intake vent is mounted lower in the cabinet. It is usually preferable to have both vents pulling air out as fresh air will come in through even the smallest of openings around doors or through wiring holes, etc. Features Complete Package for Easy Ordering Double the Ventilation or Create a 'Push/Pull' Configuration Saves Space by Consolidating Power Supplies Compatible with the Temperature Controllers (TC- BSC, TC-ALT & TC-AC) Package Includes 2 - HiFlo Lite Vents (VS-HFL) 1 - PS-500 Power Supply (PS-500) 1 - Long Lead Power Y-Cable (PA-YC-LL) Specifications for Each HiFlo Lite Vent Dimensions - Grill: L - 5 1/2” x H - 5” (14cm x 12.7) Dimensions - Fan Assembly: L - 5” x H - 4 1/2” x D - 1 1/8” (12.7cm x 11.4 x 2.9) Cooling System: 1 - 92mm Brushless Magnetic Levitation Fan (Est. 50,000 hrs.) Air Flow: Up To 65 CFM Noise: Silent to ~28 dba (Max) Req'd Hole Size: 3 3/4" x 3 3/4" (95mm x 95mm) Power Specifications Connection: 2-Pin FastWire Power System (Ensure proper polarity - Tip to +) Voltage: 7 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling Current: 200 milliamps at 12V DC
This package is appropriate if you need two vents running simultaneously in your system. Buying in packages adds convenience and ensures that everything is included (except temperature controllers or other options if desired).

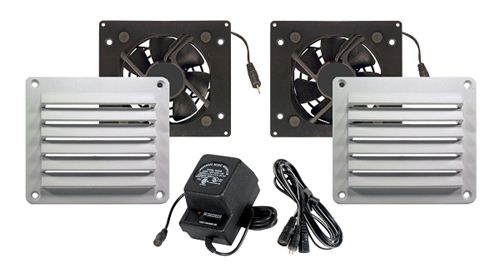

Package Includes 2 - HiFlo Lite Vents (VS-HFL) 1 - PS-500 Power Supply (PS-500) 1 - Long Lead Power Y-Cable (PA-YC-LL)
Specifications for Each HiFlo Lite Vent Dimensions - Grill: L - 5 1/2” x H - 5” (14cm x 12.7) Dimensions - Fan Assembly: L - 5” x H - 4 1/2” x D - 1 1/8” (12.7cm x 11.4 x 2.9) Cooling System: 1 - 92mm Brushless Magnetic Levitation Fan (Est. 50,000 hrs.) Air Flow: Up To 65 CFM Noise: Silent to ~28 dba (Max) Req'd Hole Size: 3 3/4" x 3 3/4" (95mm x 95mm)
Power Specifications Connection: 2-Pin FastWire Power System (Ensure proper polarity - Tip to +) Voltage: 7 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling Current: 200 milliamps at 12V DC
