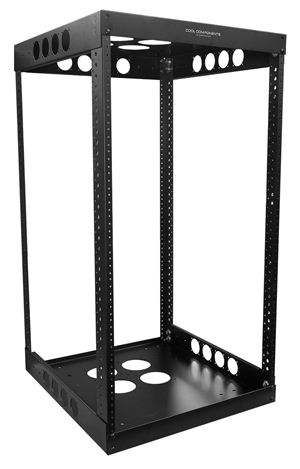

19RU Equipment Rack with Built-In Cooling

This is a EIA Compliant 19” equipment rack but is far from ‘standard’. It features integrated venting systems (active venting) as well as other cooling options that require no additional space in the rack. The integrated cooling and optional features provide for aggressive yet quiet and cost effective solutions for cooling in even the most demanding situations.

Beyond features not seen in any other rack system on the market, this rack is a tremendous value when considering that built-in it has the equivalent of $180 in cooling products.  Additional value is created when using additional assemblies because only fan assemblies are required, not complete units.

This rack comes with the option to utilize five fan assemblies with each assembly featuring four 50mm fans. There are three of these assembly locations in the top and two in the bottom. The racks comes standard with two fans assemblies but additional assemblies can be added as needed (purchased separately).   The rack also features the ability to install larger 92mm intake and exhaust fans in top and bottom trays of the racks.  Install two or four 92mm fans in the top and or bottom trays for the most extreme cooling!

Includes Two Fan Kits, PS-500 Power Supply & Hardware Related Accessories

• 19” Equipment Rack System with Integrated Cooling
• Cool Rack Components without Separate Cooling Products ($180 Value in Cooling Products)
• Knock Down Design for Easy Shipping but Designed for Even Easier Assembly
• Various Built-In Options for Cooling
• Racks Include Fan Assemblies to Utilize Various Fan Mounting Options (2 assemblies included)
• More Aggressive Intake & Exhaust Options for Mounting Larger Fan Units in the Bottom & Top Trays
• All Cooling/Fan Options Can be Configured for Intake or Exhaust
• Uses Variable Voltage Power Supply to Adjust Fan Speed
• Compatible with Temperature Controllers (TC-BSC & TC-ALT)
• Optional Casters for Easily Moving the Rack

Optional Cool Rack Accessories

• Caster Kit (RK-CK)
• 50x10 4-Fan Assembly (FK-5010-4)
• 92x25 2-Fan Assembly (FK-92-2)
• 2RU & 3RU Cool Shelves (RK-CS-2 & RK-CS-3)
• 1RU & 2RU Standard Shelves (RK-SS-1 & RK-SS-2)

General Specifications

Dimensions:             W - 19” x D – 22” x H – 37 1/4” (without casters)

Construction:            Heavy Gauge Steel (Black Powder Coating)

Design:                    EIA Compliant, Four Post Knock Down Design

                               10-32 Theaded Front Rails

Cooling Included:      2 - 4-Fan Cooling Assemblies (4 x 50mm Fans)

Optional Cooling:      2 Additional 4-Fan Cooling Assemblies

                               92mm Fan Assemblies for Top & Bottom Trays - Up to 4 Fans per Tray

Power Specifications

Included Power Supply:     1 - 500mA Variable Voltage Power Supply

Voltage:                           7-9V DC for Normal Operation or 9-12V for More Aggressive Cooling

Current:                           320mA at 12V DC (not including options)
