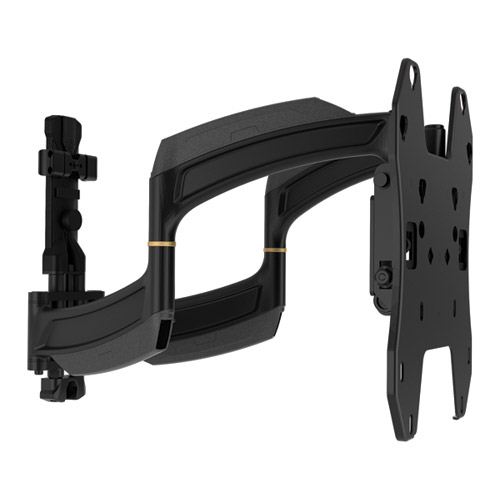

Chief TS318SU

Medium THINSTALL™ Dual Swing Arm Wall Mount - 18" Extension

A lightweight, low-profile full-motion wall mount for TVs 26-52"

Features

• Ultra Low Profile Sleek design collapses to 1.8" (46 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
• Extends up to 18" (457 mm) Full extension maximizes viewing potential
• Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
• Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
• Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment

Specifications

• Certifications: UL Listed
• Color: Black
• Manual Height Adjustment: 1
• Maximum Extension: 18.1" (459.7mm)
• Maximum Screen Thickness: 5" (127mm)
• Minimum Depth: 1.8" (46 mm)
• Mounting Pattern Compatibility (Universal Versions): 100 x 100mm - 600 x 400mm
• Orientation: Landscape
• Overall Dimensions (H x W x D): 13.5" x 22.6" x 1.8" (343 x 574 x 46mm)
• Pivot (numerical value): ±90° (depending on screen width)
• Post-Installation Leveling (Roll): Yes
• Shipping Weight: 23.00 lbs
• Solution Type: Universal
• Tilt: + ° , - 15°
• Typical Screen Sizes: 26 - 52"
• Wall Stud Compatibility (inches): Single Stud
• Weight Capacity: 75 lbs (34.kg)
