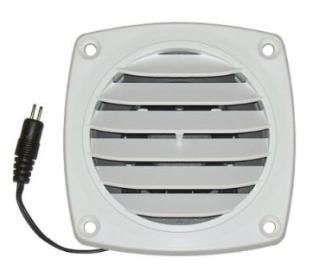

Use this Unit Only when the Cabinet Vent (VS-CV) Will Not Fit

This unit is ideal for venting cabinets and enclosures with limited space.  The unit is self-contained and features a top-quality brushless fan for low noise and long life. The fan unit can be configured to pull air out of a cabinet (default configuration), or push air into the cabinet by easily reversing the fan. The unit is very easily installed and is powered with DC voltage and when used with our Universal Power Supplies, can be run silently or more aggressively depending on the application.

     Features

• Quiet & Efficient Operation
• Effectively Circulates Air in a Cabinet or Enclosure
• Sleek & Compact Size Allows for Placement in Tight Spaces
• Quick and Easy Installation
• Uses Variable Voltage Power Supply to Adjust Fan Speed based on the Application
• Compatible with the Temperature Controllers for Automated Control (TC-BSC, TC-ALT & TC-AC)
• Airflow Direction is Easily Reversed

General Specifications



Dimensions:              W - 3 5/8” x H - 3 5/8” x D - 1 1/4” (9.2cm x 9.2 x 2.9)

Construction:             PVC w/ Gloss Finish (Available in Black & White)

Cooling System:        1 50mm x 10mm Brushless Magnetic Levitation Fan (Est. 50,000 hrs.)

Air Flow:                   10 CFM (Max)

Noise:                       Silent to ~25 dba (Max)

Req’d Hole Size:        3” (76mm)

Power Specifications

Multiple Units Can Be Powered with a Single PS-300 Power Supply





Connection:             2-Pin FastWire System (Ensure proper polarity - Tip to +)

Voltage:                  5 to 9V DC for Normal Operation or 9-12V for More Aggressive Cooling

Current:                  40 milliamps at 12V DC
