VT-TR1M
Vitek
VT-TR1M

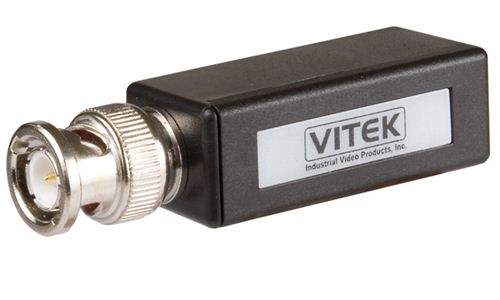

Vitek VT-TR1M - Passive UTP Transciever - 1300in Color TX Range. U/M: each
Arizona: Special Order
Vegas: Special Order
Out of Stock
Retail: $14.00 Each




VT-TR1M
Passive UTP Transceiver

  • Up to 2000’ B/W or 1300’ Color video signal transmission
  • Easy to install screw terminals
  • Reduces exposure to ground loops and electrical interference
  • Uses CAT5 cable for ease of installation
  • Passive - No External Power Required!
The VT-TR1M Passive UTP Transceiver combines the ultimate in Affordability and ease of installation. The VT-TR1M is capable of transmitting up to 2000’ in of B/W video or 1300’ in Color across 24AWG CAT5 cable. The no power requirement of passive transmission, the ease of thin, light weight CAT5, and the easy to install terminal screws make installation a breeze.
VT-TR1M Specifications:
BNC Video Input 1
Video Input 1V p-p, 75 Ohms
UTP Output 1
Transmission Distance 2000’ in of B/W / 1300’ in Color
Cable Requirement CAT5 Twisted Pair (24AWG) or CAT2, 3, 4, or 6
Video Formt RS170, NTSC, PAL, SECAM, CCIR
Maximum Input 2VPP
Insertion Loss Less than 2dB per pair over the frequency range from DC to 5Mhz
Return Loss Greater than 15dB over the frequency range from DC to 5Mhz
Frequency response DC to 5 Mhz
Attenuation DC to 5 Mhz 1.5dB Max
Common Mode Rejection 15Khz to 5 Mhz , 60 dB
Transient Immunity X
Impedance Coax, Male BNC: 75 Ohms / Terminal Block: 100 Ohms
Power No power required
Wire type UTP (Unshielded Twisted Pair) 24 AWG or thicker
Category Category 2, 3 , 4, 5, 6 or Better
UTP connection Terminal Blocks
Case ABS Plastic
FCC, CE , C-TICK Approval YES
Temperature range -10 ~ 74C
Humidity range 0 ~ 95%
Dimensions 2.4" x 0.75" x 0.6" (61mm x 19mm x 15.3mm)
