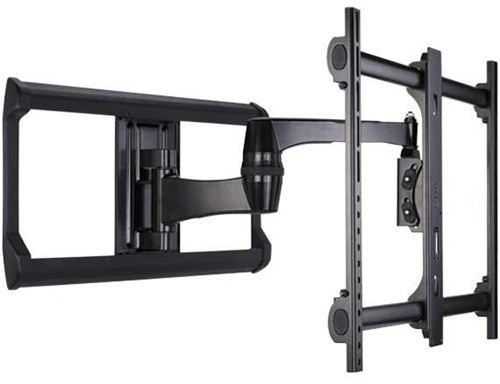

Sanus VLF220

Full-Motion Wall Mount

For 37" – 65" flat-panel TVs — Extends 20" / 50.8 cm

The SANUS VLF220 full-motion mount for 37" – 65" TVs up to 130 lbs / 59.09 kg is engineered for the easiest installation possible. Our QuickConnect™ system allows the TV to snap onto the arm assembly with one easy movement and unlock with the push of a tab. The amazing FollowThru™ in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow. Post-installation level adjustment allows the TV to “roll” up to 5º clockwise and counterclockwise to ensure it is perfectly level, and lateral shift makes it easy to center the TV on the wall, even with off-center studs. Virtual Axis™ allows the TV to tilt up or down with the push of a finger, helping you reduce glare from lights or windows and find the perfect viewing angle. Universal mounting brackets. Mount now fits TVs 37” – 65”, and all current VLF220 models have been tested for compatibility with the updated size range.

Please Note: SANUS is aware of the issue with this product's lag bolts, and we are currently working toward a solution.

Features

• Full-motion mount extends, pans, tilts and swivels for easy viewing anywhere in a room
• FollowThru™ in-arm channel completely conceals and routes cables for a clean appearance
• Virtual Axis™ provides smooth tilt motion with the touch of a fingertip
• Post-installation leveling adjustments allow TV to be perfectly positioned after hanging
• Lateral shift allows TV to slide left and right for perfect placement, even with off-center studs
• UL-listed for safety and quality assurance

Specifications

• Model Code: VLF220
• Price: $399.99
• UPC Code: VLF220-B1-793795520494-Black
• Product Width: 33.13" / 84.15 cm
• Product Height: 22.00" / 55.88 cm
• Product Weight: 36.08 lb / 16.4 kg
• Product Depth Max: 20.00" / 50.8 cm
• Product Depth Min: 3.46" / 8.79 cm
• Package Width: 36.06" / 91.59 cm
• Package Height: 3.54" / 8.99 cm
• Package Depth: 24.92" / 63.3 cm
• Package Weight: 40.04 lb / 18.2 kg
• TV Size Range: 37.00" - 65.00" / 93.98cm - 165.1cm
• Maximum TV Weight: 130.00 lb / 59.09 kg
• Mounting Pattern: Universal
• Tilt: 5.00° / - 15.00°
• Swivel: 75.00° / - 75.00°
• Roll: 5.00° / - 5.00°

QuickConnect™

The QuickConnect™ system makes it easy to attach your TV to the mount's arm assembly and lock it in place in one easy movement.

• Simply insert the locking tab on the monitor plate into the opening on the arm assembly and let it slide downward into place
• An audible click will let you know the parts are correctly assembled
• To remove your TV, just push in on the locking tab to disengage it from the arm assembly

FollowThru™

This innovative in-arm cable channel protects and conceals cables the entire length of the extension arm without inhibiting movement, even through the elbow.

• Exclusive design allows mount to extend, retract and pan with the easiest, most fluid motion possible
• An adjustable tension ring lets you find and keep the perfect position for your TV
• Decorative covers conceal cables inside the arm after they're installed for a seamless appearance

Virtual Axis™

This exclusive patented technology allows smooth, easy tilting motion by balancing the weight of the TV on itself.

• Tilt your TV up or down with just the touch of a finger — no tools are required to adjust the viewing angle
• Easily reduce glare and reflections caused by lights or windows
