VMF220-B1
Sanus
VMF220-B1
Sanus VMF220-B1 - 20in Full-Motion mount for 32-47in LCD sets- Black. U/M: each
Arizona: In Stock
Vegas: In Stock
Out of Stock
Retail: $299.99 Each

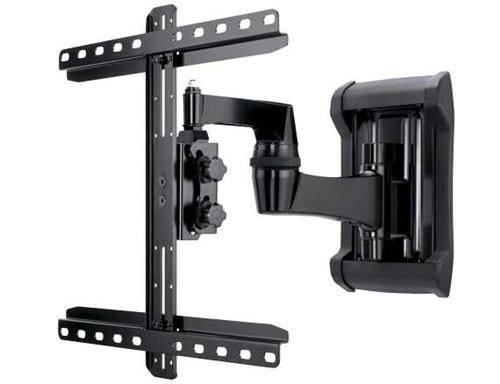

Sanus VMF220

Full-Motion Wall Mount

For 32" – 47" flat-panel TVs — Extends 20" / 50.8 cm

The SANUS VMF220 full-motion mount for 32" – 47" TVs up to 100 lbs / 45.45 kg is engineered for the easiest installation possible. Our QuickConnect™ system allows the TV to snap onto the arm assembly with one easy movement and unlock with the push of a tab. The amazing FollowThru™ in-arm cable channel protects and completely conceals all cables without inhibiting movement, even through the elbow. Post-installation level adjustment allows the TV to “roll” up to 5º clockwise and counterclockwise to ensure it is perfectly level. Virtual Axis™ allows the TV to tilt up or down with the push of a finger, helping you reduce glare from lights or windows and find the perfect viewing angle. Universal mounting brackets. Mount now fits TVs 32” – 47”, and all current VMF220 models have been tested for compatibility with the updated size range.

Please Note: SANUS is aware of the issue with this product's lag bolts, and we are currently working toward a solution.

Features

  • Full-motion mount extends, tilts and swivels for easy viewing anywhere in a room
  • FollowThru™ in-arm channel completely conceals and routes cables for a clean appearance
  • Virtual Axis™ provides smooth tilt motion with the touch of a fingertip
  • Post-installation leveling adjustments allow TV to be perfectly positioned after hanging
  • Decorative covers conceal mounting hardware for a finished appearance

Specifications

  • Model Code: VMF220
  • Price: $269.99
  • UPC Code: VMF220-B1--Black
  • Product Width: 21.18" / 53.8 cm
  • Product Height: 19.50" / 49.53 cm
  • Product Weight: 24.86 lb / 11.3 kg
  • Product Depth Max: 20.00" / 50.8 cm
  • Product Depth Min: 3.83" / 9.73 cm
  • Package Width: " / 0 cm
  • Package Height: 2.95" / 7.49 cm
  • Package Depth: 20.59" / 52.3 cm
  • Package Weight: 27.94 lb / 12.7 kg
  • TV Size Range: 32.00" - 47.00" / 81.28cm - 119.38cm
  • Maximum TV Weight: 100.00 lb / 45.45 kg
  • Mounting Pattern:  Universal
  • Tilt: 5.00° / - 15.00°
  • Swivel: 75.00° / - 75.00°
  • Roll: 5.00° / - 5.00°
  • Roll: 1.50° / - 1.50°

QuickConnect™QuickConnect™

The QuickConnect™ system makes it easy to attach your TV to the mount's arm assembly and lock it in place in one easy movement.

  • Simply insert the locking tab on the monitor plate into the opening on the arm assembly and let it slide downward into place
  • An audible click will let you know the parts are correctly assembled
  • To remove your TV, just push in on the locking tab to disengage it from the arm assembly

FollowThru™FollowThru™

This innovative in-arm cable channel protects and conceals cables the entire length of the extension arm without inhibiting movement, even through the elbow.

  • Exclusive design allows mount to extend, retract and pan with the easiest, most fluid motion possible
  • An adjustable tension ring lets you find and keep the perfect position for your TV
  • Decorative covers conceal cables inside the arm after they're installed for a seamless appearance

Virtual Axis™Virtual Axis™

This exclusive patented technology allows smooth, easy tilting motion by balancing the weight of the TV on itself.

  • Tilt your TV up or down with just the touch of a finger — no tools are required to adjust the viewing angle
  • Easily reduce glare and reflections caused by lights or windows
