P3AC24-1-3WL

1 OUTPUT, 24VAC 3 AMP CCTV  WEATHER PROOF POWER SUPPLY

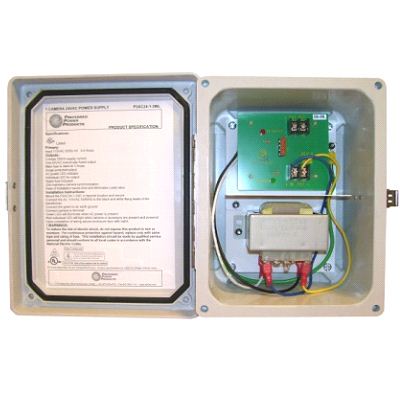

The P3AC24-1-3WL is a CCTV power center engineered to manage remote camera and accessory power requirements in a NEMA 4X weatherproof enclosure. The P3AC24-1-3WL distribution module is designed with 1 individually fused output for powering up to 1 CCTV camera or accessory.

It will provide 24Volts AC via distribution to one fused output with a total of 3.0 Amps continuous supply current.

Features

• Convenient screw terminal and fuse access.
• AC power LED indicator.
• Includes transformer and spare fuses.
• Lightweight molded fiberglass NEMA 4X weatherproof enclosure.
• Uses easy to find automotive style fuses.

Specifications

• Input 115VAC 50/60 HZ; 0.9 Amps.
• One 24VAC individually fused output.
• Output fuses are rated at 3 Amps.
• 3 Amps 100 VA supply current at 70°F.
• Main fuse is rated at 5 Amps.
• UL listed
• Unit maintains camera synchronization.
• Transformer: 110VAC/24VAC, 100VA.
• Enclosure dimensions: 8” (H) x 6” (W) x 4.5” (D)
