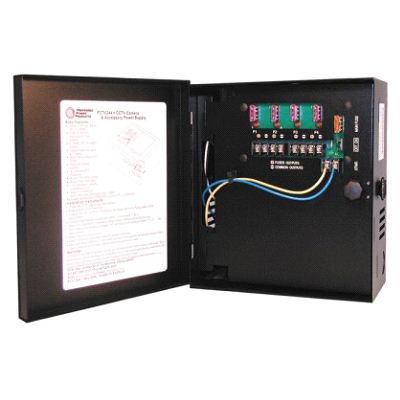

P3AC24-4-4L

24VAC, 4 OUTPUT, 4 AMP CCTV POWER SUPPLY

The P3AC24-4-4L power supply is engineered to manage remote camera and accessory power requirements for various CCTV or general security applications. The P3AC24-4-4L is designed with four (4) individually fused, non-power limited outputs of 24VAC. Each unit is housed in a premium heavy gauge, side latching enclosure.

Features

• Convenient screw terminal and fuse access

• Power ON/OFF switch

• AC power LED indicator (Green)

• Individual output LED indicates power is present (Red)

• Easy to identify automotive style fuses

• Side latching, side vented, heavy gauge metal enclosure

• Double coated polyurethane finish

• Knock-out for cam-lock

• Multiple 1” knock-outs to accommodate various wiring configurations

• Spare fuses and AC line cord included (for testing purposes)

• Also available in 28VAC version: P3AC28-4-4 (non-UL)

• Also available with optional PTC protected outputs -P3AC24-4-4CB (non - UL)

Specifications

• Input 115VAC 50/60 HZ: 0.9A

• Output: 4A @ 24VAC (100VA)

• Individual output fuses are rated at 3A

• Main fuse is rated at 5A

• Unit maintains camera synchronization

• Maximum temperature range: 32°F to 120°F (0°C to 49°C)

• Enclosure dimensions: 10” (H) x 9” (W) x 4.5” (D)

• Shipping weight: 11 lbs

• Transformer includes built-in thermal protection

• Ideal operating temperature: 70°F (21°C)

• For indoor use only

• UL listed

*Specifications subject to change without notice
