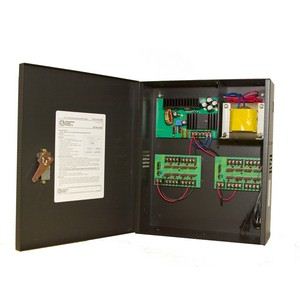

P3DC12-16-10

12VDC, 16 OUTPUT, 10 AMP CCTV POWER SUPPLY

The P3DC12-16-10 power supply is engineered to manage remote camera and accessory power requirements for various CCTV or general security applications. The P3DC12-16-10 is designed with sixteen (16) individually fused, non-power limited outputs of 12VDC. Each unit is housed in a premium heavy gauge, front spring loaded, locking enclosure.

FEATURES

• Convenient screw terminal and fuse access

• Power ON/OFF switch

• AC power LED indicator (Green)

• Individual output LED indicates power is present (Red)

• Easy to identify automotive style fuses

• Front spring loaded, locking, side vented, heavy gauge metal enclosure

• Double coated polyurethane finish

• Knock-out for cam-lock

• Multiple 1” knock-outs to accommodate various wiring configurations

• Also available with optional PTC protected outputs -- P3DC12-16-10CB

SPECIFICATIONS

• Input 115VAC 50/60 HZ: 2.5A

• Output: 10A @ 12VDC - electronically filtered and regulated

• Individual output fuses are rated at 3A

• Main fuse is rated at 10A

• Built-in charging circuit for sealed lead acid batteries

• Transformer includes built-in thermal protection

• Voltage can be adjusted +/- 10% to compensate for long wire runs

• Maximum temperature range: 32°F to 120°F (0°C to 49°C)

• Ideal operating temperature: 70°F (21°C)

• For indoor use only

• Enclosure dimensions: 15.5” (H) x 13” (W) x 4.5” (D)

• Shipping weight: 23 lbs

*Specifications subject to change without notice
