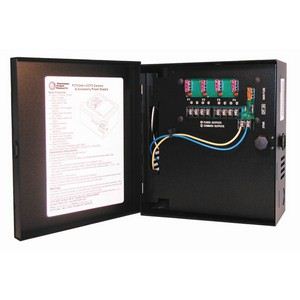

P3DC12-4-5

12VDC, 4 OUTPUT, 5 AMP CCTV POWER SUPPLY

The P3DC12-4-5 power supply is engineered to manage remote camera and accessory power requirements for various CCTV or general security applications. The P3DC12-4-5 is designed with four (4) individually fused, non-power limited outputs of 12VDC. Each unit is housed in a premium heavy gauge, side latching enclosure.

Features

• Convenient screw terminal and fuse access

• Power ON/OFF switch

• AC power LED indicator (Green)

• Individual output LED indicates power is present (Red)

• Easy to identify automotive style fuses

• Side latching, side vented, heavy gauge metal enclosure

• Double coated polyurethane finish

• Knock-out for cam-lock

• Multiple 1” knock-outs to accommodate various wiring configurations

• Also available with optional PTC protected outputs -- P3DC12-4-5CB

Specifications

• Input 115VAC 50/60 HZ: 1A

• Output: 5A @ 12VDC - electronically filtered and regulated

• Individual output fuses are rated at 3A

• Main fuse is rated at 7.5A

• Built-in charging circuit for sealed lead acid batteries

• Transformer includes built-in thermal protection

• Maximum temperature range: 32°F to 120°F (0°C to 49°C)

• Ideal operating temperature: 70°F (21°C)

• For indoor use only

• Enclosure dimensions: 10” (H) x 9” (W) x 4.5” (D)

• Shipping weight: 11 lbs

• Voltage can be adjusted +/- 10% to compensate for long wire runs

*Specifications subject to change without notice
