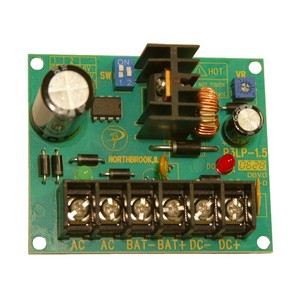

P3LP-1.5

6/12 VDC - 1.5A, 24 VDC - 1.0A

LINEAR POWER SUPPLY/CHARGER

The P3LP-1.5 is a linear power supply and charger. It is engineered to convert low voltage AC input into 6VDC or 12VDC @1.5 AMPS or 24VDC @1 AMP of continuous supply current.

The P3LP-1.5 has a number of applications for CCTV, access control and general security system accessories that require DC power.

Features

• Filtered and electronically regulated output

• Built-in charger for sealed lead acid or gel type batteries

• Automatic switch over to stand-by battery when AC fails

• Circuit breaker battery protection

• 100% full load burn-in tested

• Thermal overload and short circuit protection

• AC input and DC output LED indicators

• Trim pot adjustable voltage

• Includes battery leads

Specifications

• 1.5 A continuous output current at 6VDC-12VDC

• 1A continuous output current at 24VDC

• Dip switch selectable 6VDC - 12VDC - 24VDC

• Maximum charge current 300mA

• Board dimensions: 3” (L) x 2.5” (W) x 1.25” (H)

• Shipping weight: 1 lb

*Specifications subject to change without notice
