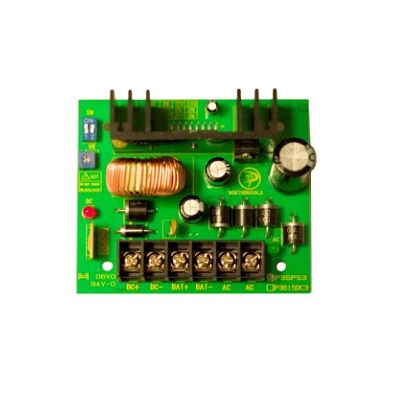

P3  P3PS-3

6, 12 or 24 VDC, 3A SWITCHING POWER SUPPLY/CHARGER

The P3PS-3 is a switching power supply and charger. It is engineered to convert low voltage AC input into 12 VDC or 24 VDC @ 3 AMPS of continuous supply current.

The P3PS-3 has a number of applications for CCTV, access control and general security system accessories that require DC power.

Features

• Filtered and electronically regulated output

• Built-in charger for sealed lead acid or gel type batteries

• Automatic witch over to stand-by battery when AC fails

• Circuit breaker battery protection

• 100% full load burn-in tested

• Thermal overload and short circuit protection

• AC input and DC output LED indicators

• Extremely compact design

• Includes battery leads

Specifications

• Dip switch selectable 6VDC, 12VDC or 24VDC

• 3A continuous output current at 6VDC, 12VDC or 24VDC

• Maximum charge current 350mA

• Board dimensions: 3.5” (L) x 2.6” (W) x 1.6” (H)

• Shipping weight: 1 lb

*Specifications subject to change without notice

Related Part Numbers

P3PS-3-OXSE: P3PS-3, P3SE100 Enclosure, P3XR24100 Open Frame Transformer

P3PS-3-LE: P3PS-3, P3LE100 Enclosure

P3PS-3-LEXR: P3PS-3, P3LE100 Enclosure, P3XR24100 Open Frame Transformer

P3PS-3-SE: P3PS-3, P3SE100 Enclosure

P3PS-3-XSE: P3PS-3, P3SE100 Enclosure, P3PT1650 Plug-In Transformer
