AT-PC41A

4x1 ATLONA VGA + STEREO AUDIO SWITCH

Atlona AT-PC41A is a high performance VGA switcher with remote. Simply pressing a button on the remote you can select your desired VGA source to be routed to a display. Switcher is tested to garantee resolution up to 1920 x 1200 or 1080p without signal degradation.

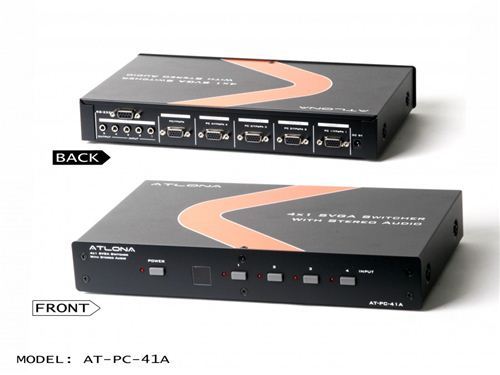

4x1 ATLONA VGA + ANALOG AUDIO SWITCHER. MODEL: AT-PC41A

Atlona AT-PC41A is a high performance VGA switcher with remote. Simply press a button on the remote you can select your desired VGA source to be routed to a display. Switcher is tested to guarantee resolution up to 1920 x 1200 or 1080p without signal degradation. Atlona AT-PC41A is also equipped with analog audio connections to transfer audio signal from either source to a display or audio receiver.

Note: OPTIONALPOWER OVER USB SOLUTION NOW AVAILABLE FOR THIS ITEM!! AT-PWUSB

User Instructions:
Installs in seconds. Connect all the video sources to any of the inputs on the switch and connect the output cable to the display. Use a remote control or buttons on the front panel to switch video inputs. We recommend using high quality vga cables for the best signal transfer.

Features:

• LED indicators, tells you which input is currently active
• IR remote control.
• Supports high resolution input:
  PC: VGA, SVGA, XGA, SXGA, UXGA (1600x1200) and WUXGA (1920x1200), &
  HDTV: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p.
• Bandwidth: 650MHz.
• Plug and play, easy to install and operate.
• Built-in advance circuit ensures a smooth transition when switching from one PC/HD source into another.
• RS-232 interface allows control from a distant device. (Download RS232 Commands)
• Audio format: L/R analog.

Specifications:

• Frequency bandwidth: 650 Mhz ( -3db )
• Video Inputs: 4 x HD15 connectors ( VGA or Component Video Compatible )
• Audio Inputs: 4 x 3.5mm mini audio inputs
• Video Output: HD15 connector ( VGA or Component Video Compatible )
• Audio Output: 1x 3.5mm mini audio input
• Max. Resolution: 1080p or 1920 x 1200
• Differential Gain: 0.05%
• Power Consumption: 5 Watt ( max. )
• Power Supply: 5V DC Universal 110/220
• Dimensions: 12” W x 7” D x 2” H
• Weight: 5LB

Package Includes:

• Atlona 4x1 VGA Switcher w/Analog Audio
• IR Remote control
• 5V Universal Power Supply ( 110/220v )
• Serial cable
• 3ft Mini Audio Cable
• User's Manual

Warranty:

• 3 years parts and labor
