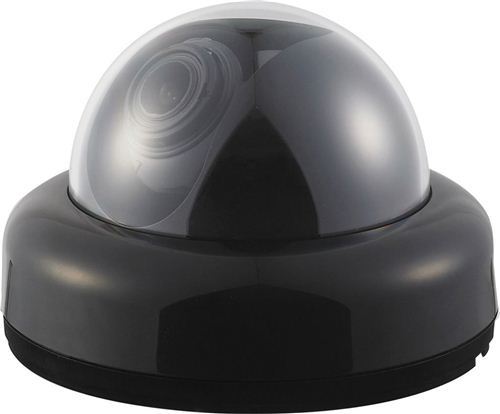

ICR-630B
IC Realtime
ICR-630B
IC Realtime ICR-630B - Indoor Black dome Analog Camera- 1/3 Sony Super HADII- 600TV Lines- 2.8-12MM Lens- 12VDC/24VAC- no power supply included. U/M: Each
Arizona: Special Order
Vegas: Special Order
Out of Stock


The ICR-630 is a cost effective camera with true day and night functions. It offers 600 TV lines and is delivered by a 1/3" Sony super HAD CCD II.

 600 TV Line Resolution
 1/3" Sony Super HAD CCD ll
 Day and Night Function
 0.1Lux at F1.2 (Color) / 0.01Lux (B/W)
 2DDNR (2D Digital Noise Reduction)
 Controlled by OSD Menu
 DC iris control
 Privacy Function
 Motion Detection
 Easy Installation & 3-Axis

Resolution
600 TV Lines
Sensor
1/3 inch SONY Super HAD CCD ll
Total Pixels
811(H) x 508(V) 410K pixels (NTSC) 795(H) x 595(V) 470K pixels (PAL)
Effective Pixels
768(H) x 494(V) 380K pixels (NTSC) 752(H) x 582(V) 440K pixels (PAL)
Scanning System
2:1 Interlace
S/N (Y signal)
More than 50 dB (AGC off)
Frequency
Horizontal : 15.734KHz / Vertical : 59.94Hz (NTSC) Horizontal : 15.625KHz / Vertical : 50.00Hz (PAL)
Video Output
BNC : 1.0Vp-p / 75Ω
Min. Illumination
0.1Lux at F1.2 (Color) / 0.01Lux (B/W)
Electronic shutter speed
ATW1 / ATW2 / AWC→SET / MANUAL Adjustable
Electronic shutter speed
Auto / Manual (1/60 sec ~ 1/100,000 sec NTSC) (1/50 sec ~ 1/100,000 sec PAL)
O.S.D
Built-in
Backlight Compensation
OFF / BLC / HLC Selectable
AGC (Auto Gain Control)
LOW, MIDDLE, HIGH, OFF Selectable
2DDNR (2D Digital Noise R
ON/OFF
Day & Night
AUTO / COLOR / BW / EXT
Motion Detection
OFF / ON (Motion size : 28 x 15, 4 AREA)
PRIVACY
OFF / ON (8 Zone)
Image Conversion
ON / OFF
SHARPNESS
ADJUSTABLE
Operating Temperature/ Hu
-14°F~122°F / -25°C ~ +50°C / 30% ~ 80% RH
Power
12VDC (300mA) / 24VAC (150mA) Dual Power
LENS
Auto Varifocal Lens 2.8-12mm
Color
Black and White
Dimensions
3.69"(H) 5.43"(D) - 93.76mm(H) 138mm(D)
