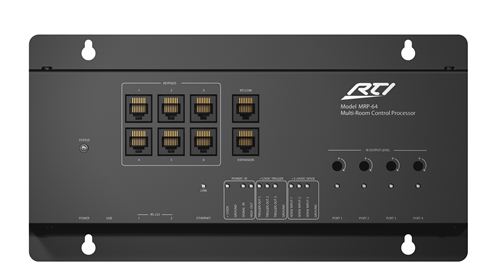

RTI MRP-64

Multi-Room Control Processor

This model has been discontinued

The MRP-64 embraces a new concept in distributed audio by acting as the interface between today’s multi-zone audio/video receiver and an assortment of RTI in-wall and handheld controllers. Never before has such a robust distributed audio system been possible at such an affordable price. The MRP-64 allows the homeowner to take full advantage of the multi-zone features built into their surround receiver – expanding the entertainment beyond the media room. With the MRP-64 all of the audio/video sources from the media room can now be accessed anywhere in the home with the simple touch of a button.

Description

The MRP-64 is a powerhouse of control in a small package. Loaded with features, the MRP-64 has six keypad ports for RTI In-wall controllers, four independent IR output ports, three voltage trigger outputs, three voltage sense inputs and an IR signal input. The MRP-64 also comes equipped with advanced features such as an Ethernet port for control and programming, two-way RS-232 communication, support for Zigbee® wireless communication, and other expansion capabilities. An IR input insures compatibility with all RTI in-wall and handheld controllers as well as industry standard IR repeater systems. No special programming is necessary since the bi-directional RS-232 drivers are preprogrammed and developed as part of RTI’s Integration Partner Program.

Key Features

• Expands virtually any home theater/multi-zone receiver into a distributed audio system.
• Six keypad inputs to provide power and communication.
• Two RS-232 ports for bi-directional communication.
• Compatible with RTI Zigbee® Transceiver Module for two-way communication.
• Preprogrammed RS-232 drivers for popular multi-zone receivers.
• Three programmable 12VDC trigger outputs.
• Three assignable voltage sense inputs.
• IR input for IR pass-through or control.
• Four addressable IR emitter ports are compatible with industry standard IR emitters and repeater systems.
• One addressable high IR output for connecting additional IR connecting block/emitters.
• All output ports incorporate both short-circuit and overload protection.
• Variable power on all IR output ports.
• Programmed using Integration Designer software.
• Non-volatile Flash memory stores your system configuration even when power is not present.
• USB and Ethernet programming.

*Integration Designer software only available to authorized RTI dealers.

Specifications

• Power Supply: +12V DC, 4A
• IR Output Ports
  • Four 3.5mm jacks
  • Compatible with industry standard IR emitters
• IR Output Drive
  • 100mA maximum (per port, adjustable)
  • 200mA maximum (high IR output port)
• Infrared Frequency Transmission Range: 15kHz - 460kHz
• Infrared Input: Compatible with industry-standard repeaters and receivers
• Trigger Outputs: Three, 12 VDC, 100mA max each
• Sense Inputs: Three, 3-24VDC
• RS-232 Ports: Two, Bi-directional RJ45 Connections
• Ethernet Port: 10/100Base-T, RJ45 Connection
• USB Ports: 1 Programming
• Control Port: RS-485 / IR / Pwr, RJ45 Connection
• RTI Com Port: Two-way Zigbee® Communication Port, RJ45 Connection
• Keypad Ports: Six, RS-485 / IR/ Pwr
• Mounting: Wall-mount or free standing
• Dimensions (W x H x D): 8.2" (208mm) x 1.3" (33mm) x 5.2" (132mm)
• Weight: 2 lb. (907g)
• Warranty: One Year (Parts & Labor)

* All specifications subject to change without notice.
