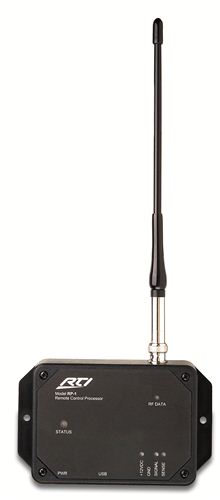

RTI RP-1

Remote Control Processor

RTI's RP-1 Remote Control Processor is a low-cost programmable control system that is designed to automate the operation of audio/video and other electronic systems. It combines many of the capablilities of RTI's more advanced control processors with an integrated RF receiver — all in one small, cost-effective package. The RP-1 is the perfect control system for single room installations such as home theaters, media centers, and bedrooms.

Description

The RP-1 Remote Control Processor is a powerful central controller that is designed for seamless integration with RTI's family of universal remote controls. Unlike simple IR-to-RF converters, the RP-1 stores all system commands and macros where they should be — within a central processor. The RP-1 is a single box solution, receiving RF trigger codes from RTI remotes via the integrated receiver.

The RP-1 Remote Control Processor provides a truly reliable, cost-effective control processor in a small package. It can be combined with any RTI remote control to form a robust control system for almost any home A/V configuration. The RP-1 even comes equipped with a power sensing port to ensure that your system's operation is always reliable and predictable.

NOTE: A 433MHz remote control must be used with this model of control processor. It is not compatible with the 2.4GHz Zigbee® enabled remote controls.

Key Features

• Stores all system commands and macros for reliable control
• Integrated RF receiver
• Ships with the ECB-5 five-port IR connecting block
• High-Output infrared port
• Power sensing input for monitoring equipment status
• Works with all RTI wireless remotes
• IR output port incorporates both short-circuit and overload protection
• RF signal reception LED
• Seamless programming using Integration Designer software*
• Non-volatile Flash memory stores your system configuration even when power is not present
• Field upgradeable firmware (thru the Integration Designer Software)
• USB programming

*Integration Designer software only available to authorized RTI dealers.

Specifications

• Power Supply: +12V DC, 500 mA
• Number of Output Ports: One (1) High Power IR Port
• IR Output Drive: 200mA maximum
• Infrared Transmission Bandwidth: 15kHz - 460kHz
• RF Receiver Carrier Frequency: 433 MHz
• Power Sense Input: Off = 0VDC - 2VDC; On = 3VDC - 20VDC
• Mounting: Wall-mount or free standing
• Dimensions (W x H x D): 5.5" (140mm) x 3.3" (84mm) x 1.4" (36mm) (width dimension does not include antenna or connectors)
• Weight: 7.0 oz. (198g)
• Warranty: One Year (Parts & Labor)

* All specifications subject to change without notice.
