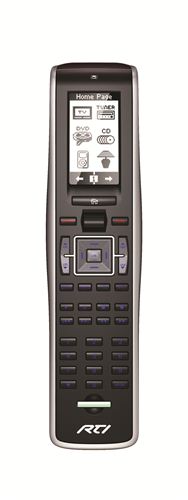

RTI T2-B

Universal Controller

The T2-B represents a recharged version of RTI’s renowned, award winning T2+ remote control. Most notable is a new contemporary industrial design. The newest T2 maintains the original hybrid configuration of a touchscreen display and hard buttons, while adding many refinements to this amazing device. Battery life has been extended with the new 1200 mAh power source. The new display and backlight make the graphics extremely sharp and vivid. The revised layout of hard buttons improves convenient access to frequently used functions, such as DVR controls. The T2-B also features a new three way rocker switch allowing comfortable navigation of on screen guides and music lists. With its sophisticated new design the T2-B will complement the décor of any environment.

Description

The T2-B remains the ideal solution to control today’s media room, embodied with the perfect balance of a customizable touchscreen display and hard buttons for tactile control. When other RTI devices are employed, the T2-B is capable of RF transmission thru walls and cabinets, RS-232 control, contact closures, power sensing and much more. Whether used as a standalone device or integrated into a complete RTI control solution, the T2-B will provide powerful and intuitive control of any electronics system - from simple to sophisticated.

NOTE: For RF control, a 433MHz antenna must be used with this model of remote. It is not compatible with the ZM-24 2.4 GHz Transceiver Module.

* Integration Designer software only available to authorized RTI dealers.

Key Features

• New ergonomic design permits effortless, one-handed operation
• Easy-to-read LCD to display custom buttons, text, graphics and scrolling lists
• Digital matrix touchscreen never needs calibration
• Tilt switch can automatically turn on the backlight when picked up
• Extremely bright, backlit display and keypad
• Easy-to-use Windows® based software for programming and customization*
• Thirty-seven assignable/programmable keypad buttons
• Three-way rocker switch for scrolling list navigation.
• Intuitive layout of keypad buttons for commonly used functions
• Transmits IR and RF (or both - on a single button or within a macro!)
• Optional RF receiver allows you to transmit through walls, cabinets, etc.
• System includes a Lithium-Ion Battery and a docking station
• Completely customizable and programmable
• Extremely wide IR transmitting frequency range
• Optional Voltage and Video sensing modules to monitor power status of equipment
• Optional interface for RS-232-controlled equipment
• Non-volatile Flash memory stores your system configuration even when power is not present
• Field upgradeable firmware (thru the Integration Designer Software*)
• USB Programming

Specifications

• Power: 3.6 VDC, 1200 mAh Lithium-Ion Battery Pack
• Power Management: Automatic On/Off (tilt switch)
• Infrared Control Range: 30 feet (9.1 meters) @ 60 degrees
• Infrared Frequency Transmission Range: 15kHz - 460kHz
• Radio Frequency Control Range: Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
• Radio Frequency Carrier: 433 MHz
• Operating Temperature: +32°F to +122°F (0°C to +50°C)
• Operating Humidity: 5% to 95% Non-condensing
• Touch Panel Display
  • High-contrast STN LCD Digital Matrix
  • 128 x 64 pixels
  • Touchscreen never needs calibrating
• Display Size (H x W): 2.4 in. x 1.3 in (61mm x 33mm)
• Backlights
  • White LED (Display),
  • Blue,White,Red LED (Keypad)
• Nominal Run Time on Full Charge: 6 hours minimum, continuous use (10 to 15 days on average use)
• Standby Time on Full Charge 30 Days
• Battery Charge Time: 3-4 Hours
• Total System Memory: 256K Bytes Flash (non-volatile) memory
• Device Capability: Total number of devices is limited only by memory
• Macro Capability
  • Unlimited steps in a single macro
  • Total number of macros is limited only by memory
  • Macro capability on every button
• Communications: USB programming port
• Dimensions (L x W x D): 9.75" (248mm) x 2.5" (64mm) x 1.0" (25mm)
• Enclosure: High-impact molded ABS plastic
• Weight: 8.5 oz. (243g) with battery pack
• Warranty: One Year (Parts & Labor) 90 days on the battery

* All specifications subject to change without notice.
