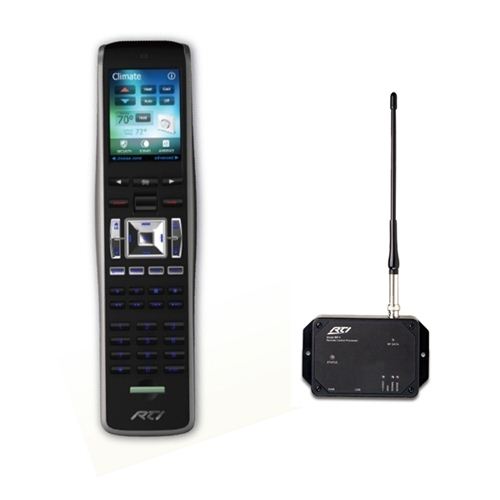

RTI T2CS+ / RP1 Kit
RF SYSTEM PROMOTIONAL PACKAGE
**Save $195 on this special package price**
RTI T2-Cs+
Universal Controller
The second generation of the T2-Cs comes equipped for the modern media room. A remote control that can do it all - provide reliable control of the entire system while remaining easy to use, including two-way feedback from supported devices. The T2-Cs+ features a customizable color display and a full complement of hard buttons for frequently used functions. The T2-Cs+ is loaded with unique features like a three-way rocker switch that allows the user to scroll through music lists or navigate on-screen menus on a TV. The ergonomic design fits perfectly in the hand, concealing powerful innovations like the built in dual RF capability.
Description
The T2-Cs+ takes command of the media room and eliminates the clutter of unnecessary remotes on the coffee table. The 2.4” color LCD can display custom text and graphics to provide customized, intuitive control. The previous generation T2-Cs, utilized a simplified programming method, which has now been updated to allow further customization if needed. The T2-Cs+ incorporates all of the control in one intuitive user interface - putting the power at your fingertips with the touch of one button.
The T2-Cs+ can function as a stand alone system controller or as part of a larger advanced control system. When used with other RTI automation devices, it is capable of transmission via one-way 433MHz and two-way 2.4GHz Zigbee RF for communication with an RTI processor. Rock-solid one-way control, powerful two-way control and even direct IR...this little remote can do it all.
Programming is easy and convenient thanks to the Windows® based Integration Designer software*.The option to use the simplified graphics programming method, the ability to customize the graphics and the compact display, combine to bring an advanced color touchscreen to a price level comfortable enough for every budget.
*Integration Designer software only available to authorized RTI dealers.
Key Features
- Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee®technology).
- Two-way feedback from compatible devices using 2.4GHz (Zigbee®) and RTIcontrol components.
- Full color TFT LCD to display custom buttons, text and graphics.
- Graphics programming is quick and efficient using auto aligning tools or turn the grid off for complete customization.
- Integrated high-resolution touchscreen.
- Thirty-five assignable/programmable keypad buttons.
- Three-way rocker switch for scrolling list navigation.
- Tilt switch can automatically turn on the backlight when picked up.
- Extremely bright, backlit display and keypad.
- Intuitive layout of keypad buttons for commonly used functions.
- Transmits IR and both RF (or both - on a single button or within a macro!).
- Optional RF receiver allows you to transmit through walls, cabinets, etc.
- Completely customizable and programmable.
- Ergonomic design permits effortless one-handed operation.
- Extremely wide IR transmitting frequency range.
- Optional ‘Voltage’ sensing modules to monitor power status of equipment.
- Optional interface for RS-232 controlled equipment.
- Non-volatile Flash memory stores your system configuration even when power is not present.
- Field upgradeable firmware.
- USB Programming.
Specifications
- Power: 3.6 VDC, 1200 mAh Lithium-Ion Battery Pack
- Power Management: Automatic On/Off (tilt switch)
- Infrared Control Range: 30 feet (9.1 meters) @ 60 degrees
- Infrared Frequency Range: 15 KHz - 460 KHz
- Radio Frequency Control Range: Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
- Radio Frequency Carrier: 802.15.4 @ 2.4 GHz (ZigBee® Wireless Mesh Networking) & 433MHz
- Display
- High-contrast Color TFT LCD
- 1/4 VGA (240x320 pixels) with 65K colors
- Integrated high-resolution touchscreen
- Display Size (H x W): 2.4 in (61mm) diagonal
- Backlight: White LED (Display), Blue/Red/White LED (Keypad)
- Operating Temperature: +32°F to +122°F (0°C to +50°C)
- Operating Humidity: 5% to 95% Non-condensing
- Total System Memory: 128M Bytes Flash (non-volatile) memory
- Device Capability: Total number of devices is limited only by memory
- Macro Capability
- Unlimited steps in a single macro
- Total number of macros is limited only by memory
- Macro capability on every button
- Communications: USB programming port
- Enclosure: High-impact molded ABS plastic
- Dimensions (H x W x D): 9.75” (248mm) x 2.5” (64mm) x 1.0” (25mm)
- Weight: 9 oz. (255g) with battery pack
- Warranty: One Year (Parts & Labor) / 90 days on the battery
All specifications subject to change without notice.
Top of page
RTI RP-1
Remote Control Processor
RTI's RP-1 Remote Control Processor is a low-cost programmable control system that is designed to automate the operation of audio/video and other electronic systems. It combines many of the capablilities of RTI's more advanced control processors with an integrated RF receiver — all in one small, cost-effective package. The RP-1 is the perfect control system for single room installations such as home theaters, media centers, and bedrooms.
Description
The RP-1 Remote Control Processor is a powerful central controller that is designed for seamless integration with RTI's family of universal remote controls. Unlike simple IR-to-RF converters, the RP-1 stores all system commands and macros where they should be — within a central processor. The RP-1 is a single box solution, receiving RF trigger codes from RTI remotes via the integrated receiver.
The RP-1 Remote Control Processor provides a truly reliable, cost-effective control processor in a small package. It can be combined with any RTI remote control to form a robust control system for almost any home A/V configuration. The RP-1 even comes equipped with a power sensing port to ensure that your system's operation is always reliable and predictable.
NOTE: A 433MHz remote control must be used with this model of control processor. It is not compatible with the 2.4GHz Zigbee® enabled remote controls.
Key Features
- Stores all system commands and macros for reliable control
- Integrated RF receiver
- Ships with the ECB-5 five-port IR connecting block
- High-Output infrared port
- Power sensing input for monitoring equipment status
- Works with all RTI wireless remotes
- IR output port incorporates both short-circuit and overload protection
- RF signal reception LED
- Seamless programming using Integration Designer software*
- Non-volatile Flash memory stores your system configuration even when power is not present
- Field upgradeable firmware (thru the Integration Designer Software)
- USB programming
*Integration Designer software only available to authorized RTI dealers.
Specifications
- Power Supply: +12V DC, 500 mA
- Number of Output Ports: One (1) High Power IR Port
- IR Output Drive: 200mA maximum
- Infrared Transmission Bandwidth: 15kHz - 460kHz
- RF Receiver Carrier Frequency: 433 MHz
- Power Sense Input: Off = 0VDC - 2VDC; On = 3VDC - 20VDC
- Mounting: Wall-mount or free standing
- Dimensions (W x H x D): 5.5" (140mm) x 3.3" (84mm) x 1.4" (36mm) (width dimension does not include antenna or connectors)
- Weight: 7.0 oz. (198g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
Top of page
RTI ECB-5
IR Emitter Connecting Block
The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.
The ECB-5 is included with every RP-1 Control Processor and is also sold separately.
Key Features
- Five infrared emitter outputs
- Power sense input
- Variable IR output power
- Steel construction
- No power supply required for operation
Specifications
- Power: +9VDC to +16VDC, 1.5A
- Number or Output Ports: Five
- Output Ports
- 3.5 mm jacks
- Works with industry standard IR emitters
- IR Output Drive: 100mA maximum (per port, adjustable)
- Infrared Input: Compatible with industry standard repeaters/receivers
- Mounting: Wall-mount or free standing
- Dimensions (H x W): 2.6” (66mm) x .9” (23mm) x 2.4” (61mm)
- Weight: 4oz (108g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
Top of page
RTI vIRsa®
Five (5) vIRsa® Mouse IR Emitters
Designed with the professional integrator in mind, the “versatile” vIRsa Mouse is an IR emitter built to outperform all others. Installations will go smooth with an unobtrusive, low-profile IR emitter that features a flexible film adhesive which conforms to curved surfaces. Troubleshooting will be a breeze with features such as a separate holder that stays attached, allowing easy removal and replacement of the emitter, and a visible blue LED flasher that can be covered during normal operation. Since reliability is one of the most important aspects of an IR emitter, the vIRsa Mouse is engineered like no other. An actual (translucent) PCB improves the integrity of electrical connections within the emitter. A built-in resistor protects against over-driving, and precision molding ensures consistent quality. From top to bottom, thevIRsa Mouse has everything on the integrator wish list - reliability, sleek design and innovative features to make any installation go like clockwork.
Key Features
- Sleek, low-profile and symmetrical design.
- Separate holder allows for easy removal/replacement of emitter.
- Flexible film adhesive conforms to curved surfaces.
- Blue LED flasher can be visible during normal operation or only for troubleshooting.
- Translucent circuit board allows IR pass-through.
- Industry standard 3.5mm mini-plug uses precision over-molding to ensure consistency.
- Ten foot cable reaches the entire rack.
- Integrated cable management strap.
Specifications
- Input Requirements: 3V to 16V DC, 20mA minimum
- Maximum Current Consumption: 0.5mA
- Control Cable Length: 10 feet (3.0 m)
- Control Cable Plug: Standard 3.5mm plug
- Dimension (Diameter)
- Adhesive Backing .59" (15mm) diameter
- Emitter .44" (10mm) diameter
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
