RTI T1-B / MRP-64 Kit
Special Promotional Package
**Save $215 on this special package**

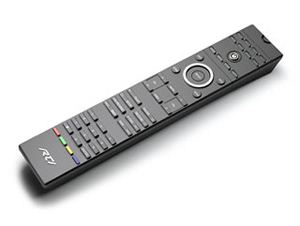

RTI T1-B
Universal Controller
The T1-B is the second generation of RTI’s popular T1 universal system controller. Completely customizable and programmable, the T1-B allows all other factory remote controls to be combined into one simple, ergonomic user interface providing powerful one-handed system control. Featuring a sleek new industrial design and perfect assortment of keypad buttons for commonly used functions, the T1-B can operate today’s sophisticated media system, no matter how complex, at an affordable price.
Description
Perfect for any media room, the T1-B can also be completely customized to control virtually any aspect of the home or office. Buttons can be individually programmed to control devices or execute multi-step macros for complex installations involving many components. Source buttons can be custom labeled to match the device being controlled for more intuitive control. The integrated tilt switch, coupled with a Lithium-ion battery and charging dock insure hours of uninterupted control.
When other RTI devices are employed, the T1-B is capable of RF transmission thru walls and cabinets, RS-232 control, contact closures, power sensing and much more. Whether used as a standalone device or integrated into a complete RTI control solution, the T1-B will provide powerful and intuitive control of any electronics system - from simple to sophisticated.
NOTE: For RF control, a 433MHz antenna must be used with this model of remote. It is not compatible with the ZM-24 2.4 GHz Transceiver Module.
*Integration Designer software only available to authorized RTI dealers.
Key Features
- Comfortable ergonomic design permits effortless, one-handed operation
- The perfect selection of hard buttons with separate transport and cursor controls
- Eight source and four general purpose assignable/programmable keypad buttons with interchangeable key labels.
- Forty assignable/programmable keypad buttons
- Transmits IR and RF (or both - on a single button or within a macro!)
- Optional RF components allow you to transmit through walls, cabinets, etc.
- Completely customizable and programmable
- Extremely wide IR transmitting frequency range
- Optional voltage and video sensing modules to monitor power status of equipment
- Optional interface for RS-232 controlled equipment when RTI RS-232 enabled processor used
- Non-volatile Flash memory stores your system configuration even when power is not present
- System includes a Lithium-ion Battery and a docking station
- Field upgradeable firmware
- USB Programming
Specifications
- Power: 3.6 VDC, 850 mAh Lithium-Ion Battery Pack
- Power Management: Automatic On/Off (tilt switch)
- Infrared Control Range: 30 feet (9.1 meters) @ 60 degrees
- Infrared Frequency Transmission Range: 15kHz - 460kHz
- Radio Frequency Control Range: Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
- Radio Frequency Carrier: 433 MHz
- Operating Temperature: +32°F to +122°F (0°C to +50°C)
- Operating Humidity: 5% to 95% Non-condensing
- Nominal Run Time on Full Charge: 20 hours minimum, continuous use (30 to 30 days on average use)
- Standby Time on Full Charge: 30 Days
- Battery Charge Time: 3-4 Hours
- Total System Memory: 256K Bytes Flash (non-volatile) memory
- Device Capability: Total number of devices is limited only by memory
- Macro Capability
- Unlimited steps in a single macro
- Total number of macros is limited only by memory
- Macro capability on every button
- Communications: USB programming port
- Dimensions (L x W x D): 10.0 in (254mm) x 1.9 in (48mm) x .9 in (23mm)
- Enclosure: High-impact molded ABS plastic
- Weight: 7 oz. (200g) with battery pack
- Warranty: One Year (Parts & Labor), 90 days on the battery
* All specifications subject to change without notice.
Top of page
RTI MRP-64
Multi-Room Control Processor
This model has been discontinued
The MRP-64 embraces a new concept in distributed audio by acting as the interface between today’s multi-zone audio/video receiver and an assortment of RTI in-wall and handheld controllers. Never before has such a robust distributed audio system been possible at such an affordable price. The MRP-64 allows the homeowner to take full advantage of the multi-zone features built into their surround receiver – expanding the entertainment beyond the media room. With the MRP-64 all of the audio/video sources from the media room can now be accessed anywhere in the home with the simple touch of a button.
Description
The MRP-64 is a powerhouse of control in a small package. Loaded with features, the MRP-64 has six keypad ports for RTI In-wall controllers, four independent IR output ports, three voltage trigger outputs, three voltage sense inputs and an IR signal input. The MRP-64 also comes equipped with advanced features such as an Ethernet port for control and programming, two-way RS-232 communication, support for Zigbee® wireless communication, and other expansion capabilities. An IR input insures compatibility with all RTI in-wall and handheld controllers as well as industry standard IR repeater systems. No special programming is necessary since the bi-directional RS-232 drivers are preprogrammed and developed as part of RTI’s Integration Partner Program.
Key Features
- Expands virtually any home theater/multi-zone receiver into a distributed audio system.
- Six keypad inputs to provide power and communication.
- Two RS-232 ports for bi-directional communication.
- Compatible with RTI Zigbee® Transceiver Module for two-way communication.
- Preprogrammed RS-232 drivers for popular multi-zone receivers.
- Three programmable 12VDC trigger outputs.
- Three assignable voltage sense inputs.
- IR input for IR pass-through or control.
- Four addressable IR emitter ports are compatible with industry standard IR emitters and repeater systems.
- One addressable high IR output for connecting additional IR connecting block/emitters.
- All output ports incorporate both short-circuit and overload protection.
- Variable power on all IR output ports.
- Programmed using Integration Designer software.
- Non-volatile Flash memory stores your system configuration even when power is not present.
- USB and Ethernet programming.
*Integration Designer software only available to authorized RTI dealers.
Specifications
- Power Supply: +12V DC, 4A
- IR Output Ports
- Four 3.5mm jacks
- Compatible with industry standard IR emitters
- IR Output Drive
- 100mA maximum (per port, adjustable)
- 200mA maximum (high IR output port)
- Infrared Frequency Transmission Range: 15kHz - 460kHz
- Infrared Input: Compatible with industry-standard repeaters and receivers
- Trigger Outputs: Three, 12 VDC, 100mA max each
- Sense Inputs: Three, 3-24VDC
- RS-232 Ports: Two, Bi-directional RJ45 Connections
- Ethernet Port: 10/100Base-T, RJ45 Connection
- USB Ports: 1 Programming
- Control Port: RS-485 / IR / Pwr, RJ45 Connection
- RTI Com Port: Two-way Zigbee® Communication Port, RJ45 Connection
- Keypad Ports: Six, RS-485 / IR/ Pwr
- Mounting: Wall-mount or free standing
- Dimensions (W x H x D): 8.2" (208mm) x 1.3" (33mm) x 5.2" (132mm)
- Weight: 2 lb. (907g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
