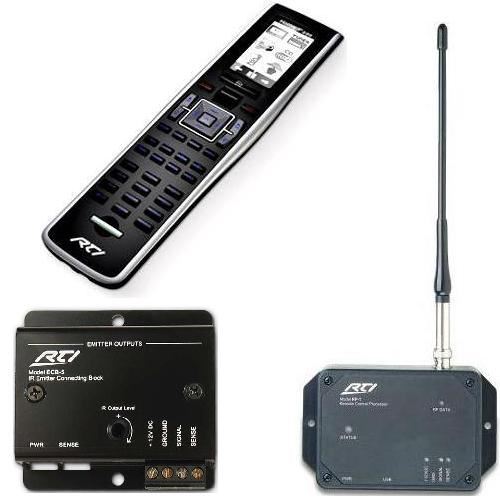

RTI T2-B / RP1
RF SYSTEM PROMOTIONAL PACKAGE
**Save $130 with this special package price**
RTI T2-B
Universal Controller
The T2-B represents a recharged version of RTI’s renowned, award winning T2+ remote control. Most notable is a new contemporary industrial design. The newest T2 maintains the original hybrid configuration of a touchscreen display and hard buttons, while adding many refinements to this amazing device. Battery life has been extended with the new 1200 mAh power source. The new display and backlight make the graphics extremely sharp and vivid. The revised layout of hard buttons improves convenient access to frequently used functions, such as DVR controls. The T2-B also features a new three way rocker switch allowing comfortable navigation of on screen guides and music lists. With its sophisticated new design the T2-B will complement the décor of any environment.
Description
The T2-B remains the ideal solution to control today’s media room, embodied with the perfect balance of a customizable touchscreen display and hard buttons for tactile control. When other RTI devices are employed, the T2-B is capable of RF transmission thru walls and cabinets, RS-232 control, contact closures, power sensing and much more. Whether used as a standalone device or integrated into a complete RTI control solution, the T2-B will provide powerful and intuitive control of any electronics system - from simple to sophisticated.
NOTE: For RF control, a 433MHz antenna must be used with this model of remote. It is not compatible with the ZM-24 2.4 GHz Transceiver Module.
* Integration Designer software only available to authorized RTI dealers.
Key Features
- New ergonomic design permits effortless, one-handed operation
- Easy-to-read LCD to display custom buttons, text, graphics and scrolling lists
- Digital matrix touchscreen never needs calibration
- Tilt switch can automatically turn on the backlight when picked up
- Extremely bright, backlit display and keypad
- Easy-to-use Windows® based software for programming and customization*
- Thirty-seven assignable/programmable keypad buttons
- Three-way rocker switch for scrolling list navigation.
- Intuitive layout of keypad buttons for commonly used functions
- Transmits IR and RF (or both - on a single button or within a macro!)
- Optional RF receiver allows you to transmit through walls, cabinets, etc.
- System includes a Lithium-Ion Battery and a docking station
- Completely customizable and programmable
- Extremely wide IR transmitting frequency range
- Optional Voltage and Video sensing modules to monitor power status of equipment
- Optional interface for RS-232-controlled equipment
- Non-volatile Flash memory stores your system configuration even when power is not present
- Field upgradeable firmware (thru the Integration Designer Software*)
- USB Programming
Specifications
- Power: 3.6 VDC, 1200 mAh Lithium-Ion Battery Pack
- Power Management: Automatic On/Off (tilt switch)
- Infrared Control Range: 30 feet (9.1 meters) @ 60 degrees
- Infrared Frequency Transmission Range: 15kHz - 460kHz
- Radio Frequency Control Range: Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
- Radio Frequency Carrier: 433 MHz
- Operating Temperature: +32°F to +122°F (0°C to +50°C)
- Operating Humidity: 5% to 95% Non-condensing
- Touch Panel Display
- High-contrast STN LCD Digital Matrix
- 128 x 64 pixels
- Touchscreen never needs calibrating
- Display Size (H x W): 2.4 in. x 1.3 in (61mm x 33mm)
- Backlights
- White LED (Display),
- Blue,White,Red LED (Keypad)
- Nominal Run Time on Full Charge: 6 hours minimum, continuous use (10 to 15 days on average use)
- Standby Time on Full Charge 30 Days
- Battery Charge Time: 3-4 Hours
- Total System Memory: 256K Bytes Flash (non-volatile) memory
- Device Capability: Total number of devices is limited only by memory
- Macro Capability
- Unlimited steps in a single macro
- Total number of macros is limited only by memory
- Macro capability on every button
- Communications: USB programming port
- Dimensions (L x W x D): 9.75" (248mm) x 2.5" (64mm) x 1.0" (25mm)
- Enclosure: High-impact molded ABS plastic
- Weight: 8.5 oz. (243g) with battery pack
- Warranty: One Year (Parts & Labor) 90 days on the battery
* All specifications subject to change without notice.
Top of page
RTI RP-1
Remote Control Processor
RTI's RP-1 Remote Control Processor is a low-cost programmable control system that is designed to automate the operation of audio/video and other electronic systems. It combines many of the capablilities of RTI's more advanced control processors with an integrated RF receiver — all in one small, cost-effective package. The RP-1 is the perfect control system for single room installations such as home theaters, media centers, and bedrooms.
Description
The RP-1 Remote Control Processor is a powerful central controller that is designed for seamless integration with RTI's family of universal remote controls. Unlike simple IR-to-RF converters, the RP-1 stores all system commands and macros where they should be — within a central processor. The RP-1 is a single box solution, receiving RF trigger codes from RTI remotes via the integrated receiver.
The RP-1 Remote Control Processor provides a truly reliable, cost-effective control processor in a small package. It can be combined with any RTI remote control to form a robust control system for almost any home A/V configuration. The RP-1 even comes equipped with a power sensing port to ensure that your system's operation is always reliable and predictable.
NOTE: A 433MHz remote control must be used with this model of control processor. It is not compatible with the 2.4GHz Zigbee® enabled remote controls.
Key Features
- Stores all system commands and macros for reliable control
- Integrated RF receiver
- Ships with the ECB-5 five-port IR connecting block
- High-Output infrared port
- Power sensing input for monitoring equipment status
- Works with all RTI wireless remotes
- IR output port incorporates both short-circuit and overload protection
- RF signal reception LED
- Seamless programming using Integration Designer software*
- Non-volatile Flash memory stores your system configuration even when power is not present
- Field upgradeable firmware (thru the Integration Designer Software)
- USB programming
*Integration Designer software only available to authorized RTI dealers.
Specifications
- Power Supply: +12V DC, 500 mA
- Number of Output Ports: One (1) High Power IR Port
- IR Output Drive: 200mA maximum
- Infrared Transmission Bandwidth: 15kHz - 460kHz
- RF Receiver Carrier Frequency: 433 MHz
- Power Sense Input: Off = 0VDC - 2VDC; On = 3VDC - 20VDC
- Mounting: Wall-mount or free standing
- Dimensions (W x H x D): 5.5" (140mm) x 3.3" (84mm) x 1.4" (36mm) (width dimension does not include antenna or connectors)
- Weight: 7.0 oz. (198g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
Top of page
RTI ECB-5
IR Emitter Connecting Block
The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.
The ECB-5 is included with every RP-1 Control Processor and is also sold separately.
Key Features
- Five infrared emitter outputs
- Power sense input
- Variable IR output power
- Steel construction
- No power supply required for operation
Specifications
- Power: +9VDC to +16VDC, 1.5A
- Number or Output Ports: Five
- Output Ports
- 3.5 mm jacks
- Works with industry standard IR emitters
- IR Output Drive: 100mA maximum (per port, adjustable)
- Infrared Input: Compatible with industry standard repeaters/receivers
- Mounting: Wall-mount or free standing
- Dimensions (H x W): 2.6” (66mm) x .9” (23mm) x 2.4” (61mm)
- Weight: 4oz (108g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
Top of page
RTI vIRsa®
Five (5) vIRsa® Mouse IR Emitters
Designed with the professional integrator in mind, the “versatile” vIRsa Mouse is an IR emitter built to outperform all others. Installations will go smooth with an unobtrusive, low-profile IR emitter that features a flexible film adhesive which conforms to curved surfaces. Troubleshooting will be a breeze with features such as a separate holder that stays attached, allowing easy removal and replacement of the emitter, and a visible blue LED flasher that can be covered during normal operation. Since reliability is one of the most important aspects of an IR emitter, the vIRsa Mouse is engineered like no other. An actual (translucent) PCB improves the integrity of electrical connections within the emitter. A built-in resistor protects against over-driving, and precision molding ensures consistent quality. From top to bottom, thevIRsa Mouse has everything on the integrator wish list - reliability, sleek design and innovative features to make any installation go like clockwork.
Key Features
- Sleek, low-profile and symmetrical design.
- Separate holder allows for easy removal/replacement of emitter.
- Flexible film adhesive conforms to curved surfaces.
- Blue LED flasher can be visible during normal operation or only for troubleshooting.
- Translucent circuit board allows IR pass-through.
- Industry standard 3.5mm mini-plug uses precision over-molding to ensure consistency.
- Ten foot cable reaches the entire rack.
- Integrated cable management strap.
Specifications
- Input Requirements: 3V to 16V DC, 20mA minimum
- Maximum Current Consumption: 0.5mA
- Control Cable Length: 10 feet (3.0 m)
- Control Cable Plug: Standard 3.5mm plug
- Dimension (Diameter)
- Adhesive Backing .59" (15mm) diameter
- Emitter .44" (10mm) diameter
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
