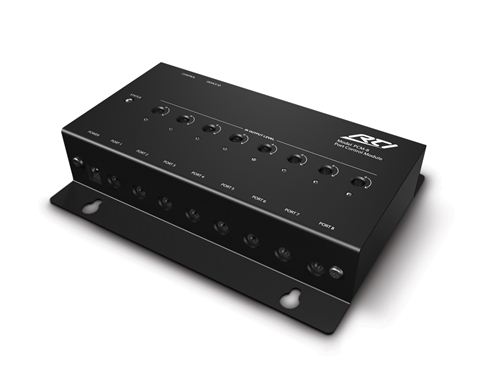

RTI PCM-8

Port Control Module

With eight multi-purpose output ports and an adjustable device ID, the PCM-8 increases the output capabilities of RTI XP-6/XP-8 Control Processors to accommodate larger projects. Each port provides IR routing capabilities, one-way RS232 communication and power sensing (with RTI accessory devices). Control is communicated from an RTI processor using standard cat-5 cable. This allows the MPIO ports of the PCM-8 to become a seamless extension of the control processors.

Key Features

• Eight MPIO ports made available to an RTI XP-8 Control Processor
• Separate addresses allow up to ten PCM-8 units in one system
• MPIO ports may be used for IR routing, one-way RS232 or power sensing (with accessory modules)
• Variable IR output power
• Sturdy steel construction
• 12VDC power supply included

Specifications

• Power +12VDC, 1A
• Multi-Purpose Output Ports
• Eight custom 3.5mm 4-conductor jacks
• Designed for RTI modules as well as industry-standard IR emitters
• IR Output Drive 100mA maximum (per port, adjustable)
• Infrared Frequency Transmission Range 15kHz - 460 kHz
• Infrared Input Compatible with industry-standard repeaters and receivers
• Control Port RS-485/IR
• Device IDs Ten, Rotary Switch
• Enclosure Formed steel, black powder coating
• Mounting Wall-mount or free standing
• Dimensions (W x H x D) 7.0”(179mm) x 5.25 ”(133mm) x 1.5 ”(38mm)
• Weight 1lb 9oz (728g)
• Warranty One Year (Parts & Labor)

* All specifications subject to change without notice.
