RTI CM-232

Serial Communication Module

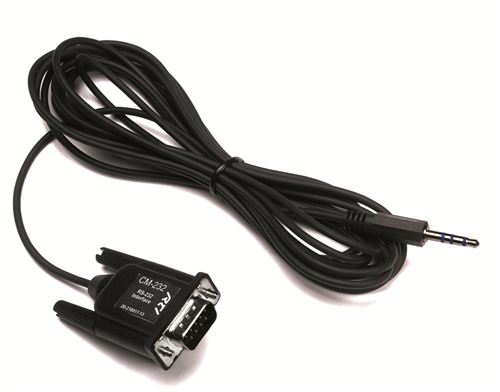

The CM-232 communication module provides an RS-232 interface to almost any RS-232 enabled device. It attaches to an RTI control system such as the XP-6 Control Processor on one end, and a device's DB-9 serial port connector on the other end. The CM-232 is capable of one-way transmission (no receive function is supported) of user-defined character or binary strings. These character strings, as well as the baud rate, parity, and bit structure are programmed using RTI's Integration Designer software package.

Key Features

• Connects to the output ports of the control processor or expansion module (such as XP3/XP6/XP8s/PCM-4)
• Allows the control processor to send commands to almost any RS-232 enabled device
• Software selectable baud rate up to 115.2K (depending on control processor)
• Industry standard DB-9 male connector
• No power supply required - Power is supplied by the output ports
• User-definable output strings using Integration Designer® software

Specifications

• Baud Rate Software Selectable (Depends on attached control system)
• Cable Length 12 Feet (3.7 m)
• Connector DB-9 Male
• Pins Used GND, TXD, DTR (tied high)
• Dimensions (W x H x D) 1.3" (33mm) x .5" (14mm) x 2" (51mm)
• Warranty One Year (Parts & Labor)

* All specifications subject to change without notice.
