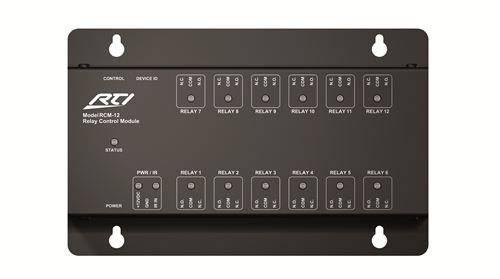

RTI RCM-12
Relay Control Module
The RCM-12 Relay Control Module provides twelve addressable relays for controlling everything from amplifiers to window coverings. Adjustable device IDs allow easy expendability for larger projects. With an IR input and a discrete code set, each relay can be triggered from RTI in-wall or handheld controllers, control processors or even third-party infrared repeater systems. Each relay can be used in a normally open or normally closed configuration.
Description
With twelve individually addressable relays and an adjustable device ID, the RCM-12 Relay Control Module is flexible and expandable enough to provide relay control for projects of any size. Each relay has a removable terminal block with connections for either a normally open or normally closed configurations.
An IR input allows the RCM-12 to be triggered from many different sources, including RTI in-wall or handheld controllers, control processors or third-party infrared repeater systems. IR commands trigger open and close functions as well as adjustable hold times for momentary relay operation.
Key Features
- Twelve individually addressable relays.
- Relays capable of switching up to 28VDC@5A.
- Discrete set of IR codes and an IR input allows relays to be triggered from virtually any IR programmable system.
- Control port for connection to RTI Control Processors.
- Relays can be used in a normally open or normally closed configuration.
- Relays create a “dry contact”.
- Programmable momentary relay hold times.
- Adjustable device ID for installations that require more than twelve relays.
- Sturdy steel construction.
- 12VDC power supply included.
Specifications
- Power: +12VDC, 1.25A
- Infrared Input: Compatible with industry-standard repeaters and receivers
- Relays: Twelve, 28 VDC@5A
- Control Port: RS-485/IR/Pwr
- Device IDs: Ten , Rotary switch
- Enclosure: Formed steel, black powder coating
- Mounting: Wall-mount or free standing
- Dimensions (W x H x D): 8.25” (209mm) x 1.3” (33mm) x 5.2” (132mm)
- Weight: 2 lb. (907g)
- Warranty: One Year (Parts & Labor)
* All specifications subject to change without notice.
