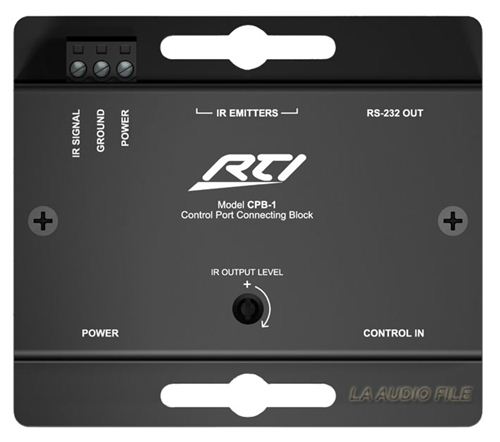

RTI CPB-1

Control Port Connecting Block

The CPB-1 Control Port Connecting Block provides a cost effective solution for one-room installations such as classrooms, that require an in-wall controller and both infrared and RS-232 control of local devices. The CPB-1 provides power to one RTI in-wall system controller and has two output ports that allow the connection of up to two single or dual infrared emitters. It also incorporates an RS-232 port for control of devices without the need of an RTI processor.

Key Features

• Provides power for one in-wall controller
• Two infrared emitter outputs
• Variable IR output power
• Allows RTI in-wall controllers to communicate via one-way RS232 to devices without a processor
• Steel construction
• 16VDC power supply included

Specifications

• Power +16VDC, 1.6A
• Number of IR Output Ports Two
• Output Ports 3.5mm jacks (Works with industry-standard IR emitters)
• IR Output Drive 100mA maximum (per port, adjustable)
• Infrared Input Compatible with industry-standard repeaters and receivers
• RS-232 RJ45 Connection (Includes RJ45 to Db9 adapter)
• Enclosure Formed steel, black powder coating
• Mounting Wall-mount or free standing
• Dimensions (W x H x D) 4.0” (102mm) x 3.5” (89mm) x 1.1” (28mm)
• Weight 8.4oz (238g)
• Warranty One Year (Parts & Labor)

* All specifications subject to change without notice.
