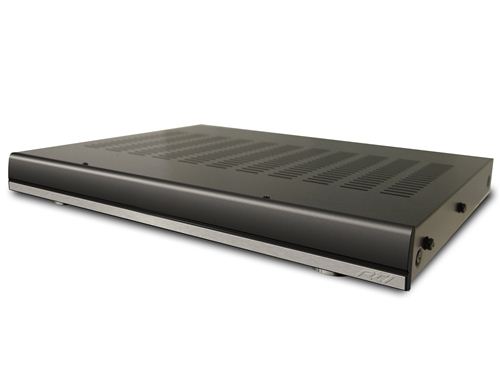

RTI CP-450
Four Channel Cool Power® Amplifier
The CP-450 is designed to add more power to an audio distribution system, at a moderate price. Equipped with a 50 watt per channel Cool Power® Amplifier, the CP-450 is perfect for installations using the AD-8 Audio Distribution System that require a couple extra speakers for those bigger rooms or maybe adding another room to a zone.
With an audio distribution system such as the AD-8 that does all the source switching and volume control, the CP-450 is designed to sit quietly in the rack, offering up additional power to where it’s needed. Designed with a slim form factor, only one space is needed in rack installations, while feet are included for free standing installations. Flexible control options include IR, RS-232 or a voltage trigger input to power the unit on, while a 12VDC trigger out and IR passthrough make daisy chaining CP-450 amplifiers a breeze.
Key Features
- Four channel amplifier utilizes Cool Power® technology.
- Fifty watts per channel.
- Expands AD-8 speaker outputs.
- Voltage trigger (3-30V AC/DC), RS-232 or IR power control.
- Rackmount or free standing installation.
- IR passthrough port
Specifications
- AC Input Voltage 115VAC or 240VAC (Switchable), 230W
- Power Switch Front Panel On/Off with LED
- Mounting Rack mount or free standing
- Dimensions (HxWxD 2.1in(53mm)x16.9in(430mm)x13.3in(340mm)
- Weight 14lbs (6.4kg)
- Operating Temperature C -10 to +40degrees, F +14 to +104 degrees
- IR Input One, 3.5mm, for IR control
- IR Output One, 3.5mm, for IR Passthrough
- RS232 Port One, Bidirectional control
- Trigger Output One, 12VDC, to trigger another CP-1650
- Trigger Input One, 3-30VDC, for power control
- Speaker Outputs Two stereo outputs, two channels each, phoenix connectors
- Audio Inputs Two stereo, RCA jacks (4)
- Rated Power/Channel 50 Watts, 20Hz to 20KHz (RMS, 2 chan driven 8ohms)
- Rated Power/Channel 70 Watts 20Hz to 20KHz (RMS, 2 chan driven 4ohms)
- IHF Dynamic Power 80 Watts/1KHz at 8 ohm load
- 120 Watts/1KHz at 4 ohm load
- Total Harmonic Distortion @50W/8 ohms & 70W/4 ohms, 0.5%
- Total Harmonic Distortion @1W/8ohm <.05%
- S/N @ Rated Power, IEC A-wtd, Source Input Shorted 100dB
- Frequency Response 20Hz to 20KHz @1W/8ohm, 0dB +/- 0.5dB
- Input Sensitivity 1W/8ohms, 140mV/1V
- Input Impedance 22KOhms
- Channel Separation @ Rated Power/1KHz, 85dB
- Crosstalk Between Sources @ Rated Power/1KHz, 100dB
- Crosstalk Between Zones @ Rated Power/1KHz, 95dB
- Warranty One Year (parts & labor)
* All specifications subject to change without notice.
