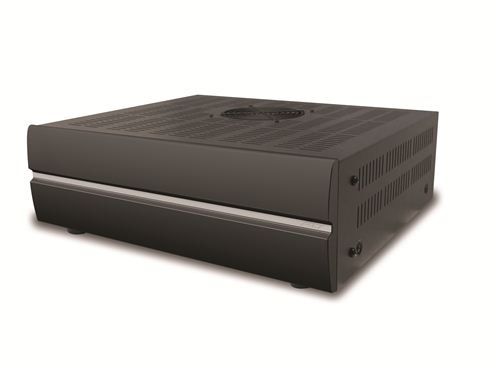

RTI CP-1650

16 Channel Cool Power® Amplifier

Utilizing Cool Power technology to expand the capabilities of an AD-8 audio distribution system, the CP-1650 is perfect in residential and commercial installations where larger rooms need more speakers and areas such as an outdoor patio need to be added to an existing zone. Designed to be an easy and cost effective way to double the power of the AD-8 output, having the additional 50 watts per channel solves those installation puzzles. If the power needs even more boost, you can bridge two channels with a simple flip of a switch, for a whopping 100 watts per channel.

The CP-1650 is designed to offer greater flexibility, especially in larger installations. Unique features, including looped audio outputs, a 12VDC trigger out and IR passthrough, make it easy to daisy chain mulitiple units together. Input level adjustments provide a tremendous amount of control over the audio in each room, keeping the big rooms full of sound and the smaller rooms from blaring. Discrete power control options include IR, two-way RS-232 or a voltage trigger input.

Key Features

• 16 channel amplifier utilizes Cool Power® technology
• 50 watts per channel
• Audio input level adjustment on each channel
• Bridgeable audio outputs for increased power (100 watts)
• Expands AD-8 speaker outputs
• Voltage trigger (3-30V AC/DC), RS-232 or IR power control
• Rackmount or free standing installation

Specifications

• AC Input Voltage 115VAC or 240VAC (Switchable), 230W
• Power Switch Front Panel On/Off with LED
• Mounting Rack mount or free standing
• Dimensions (HxWxD) 5.24in(133mm) x 17.0in(432mm) x 14.75in(375mm)
• Weight 23.4lbs (10.6kg)
• Operating Temperature C -10 to +40degrees, F +14 to +104 degrees
• IR Input One, 3.5mm, for IR control
• IR Output One, 3.5mm, for IR Passthrough
• RS232 Port One, Bidirectional control
• Trigger Output One, 12VDC, to trigger another CP-1650
• Trigger Input One, 3-30VDC, for power control
• Speaker Outputs Eight stereo outputs, two channels each, phoenix connectors
• Audio Inputs Eight, RCA jacks x 16
• Audio Loop Outputs Eight, RCA jacks x 16

Audio - 2 Channel Mode

• Rated Power/Channel: 30 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 8 ohms)
• Power/Channel: 50 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 4 ohms)
• IHF Dynamic Power: 40 Watts/1KHz at 8 ohm load, 60 Watts/1KHz at 4 ohm load
• Total Harmonic Distortion @20W/8ohm, 0.5%

Audio - Bridged Mode

• Rated Power/Channel: 100 Watts, 20Hz to 20KHz (RMS, 2 channels driven into 8 ohms)
• Total Harmonic Distortion: (100W/8 ohms), 0.5%
• Total Harmonic Distortion: (1W/8 ohms), 0.05%

Audio - General

• Total Harmonic Distortion 30W/8 ohms & 50W/4 ohms, 0.5%
• Total Harmonic Distortion @1W/8ohm <.05%
• S/N @ Rated Power, IEC A-wtd, Source Input shorted 100dB
• Frequency Response 20Hz to 20KHz @1W/8ohm, 1.5+/-.5dB
• Input Sensitivity 1W @ 8 ohms, 170mV/900mV
• Input Impedance 22KOhms
• Channel Separation @ Rated Power/1KHz, 60dB
• Crosstalk Between Sources @ Rated Power/1KHz, 100dB
• Crosstalk Between Zones @ Rated Power/1KHz, 80dB
• Warranty: One Year (parts & labor)

* All specifications subject to change without notice.
