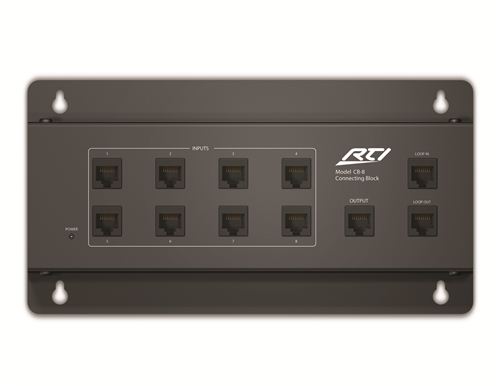

RTI CB-8

Connecting Block

The CB-8 is an installation accessory designed to provide convenient and reliable power connections for up to eight (8) RTI in-wall keypads, touchpanels and other devices. In addition to providing power, the CB-8 combines and routes the infrared outputs from the touchpanels to a single output for connection to an RTI control processor. Multiple CB-8 units can be daisy-chained for connecting more than eight devices. A 4.0 Amp, 16VDC power supply is included.

Key Features

• Includes 16VDC, 4.0 Amp power supply capable of powering up to eight RTI in-wall keypads, in-wall controller and other devices*.
• Combines and routes the infrared output from in-wall system controllers to a single output for connection to an RTI control processor
• Multiple CB-8 units can be daisy-chained for connecting more than eight devices
• RJ45 ports for easy connection of devices

* NOTE - The maximum number of in-wall controllers varies by model. Find the latest cabling/power information in the operation guide found online.

Specifications

• Power +16VDC, 4.0A
• Maximum Current per Port 1.5A
• Enclosure Formed Steel, black powder coating
• Mounting Wall-mount or free standing
• Dimensions (H x W) 5.0" (127mm) x 9.4 " (239mm)
• Weight 24.7oz (700g)
• Warranty One Year (Parts & Labor)

* All specifications subject to change without notice.
