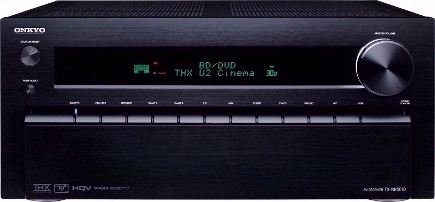

Onkyo TX-NR5010

9.2 Channel Network AV Receiver

Tradition Meets Technology in Our Stunning New Flagship Model

The culmination of nearly 70 years’ audio engineering experience, our flagship model celebrates Onkyo’s proud heritage while pushing the boundaries of technology even further. Behind the thick anti-resonant exterior panels, you’ll find a massive toroidal transformer—assisted by separate transformers for audio and video processing—to power the Three-Stage Inverted Darlington Circuitry. Both are fundamental to achieving THX® Ultra2 Plus certification. Crucial details such as the premium 192 kHz/32-bit DACs, gold-plated speaker posts and terminals, and differential DAC mode will not escape the audiophile’s attention. Nor will the Audyssey MultEQ® XT32 and DTS Neo:X™ systems. Video processing is incomparably good, with technology from HQV®, Qdeo™, and ISF upscaling video sources to 4K. With HDMI® support for two displays, 11.4-channel pre-outs, and powered audio in three zones, your entertainment options extend throughout the home, yet are easily managed with our convenient remote apps and HDMI-enabled GUI. A total of 11 HDMI ports (including MHL™ for smart phone), DLNA, and ample legacy connections allow your media to be played with exhilarating power and accuracy. This iconic blend of phenomenal sound and advanced technology is why more home theater experts own an Onkyo.

Special Features

• 9in/2out HDMI Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• THX Ultra2 Plus Certified
• Massive Toroidal Transformer and Two Separate Transformers for Audio and Video Processing
• 11.4 Multichannel Pre-Outs
• Network Capability Delivers Internet Radio and Network Streaming
• Dual Core Video Engine w/ HQV Vida and Marvell Qdeo™ Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Zone 2 HDMI Output for HD Video in a Second Zone
• Digital Crossover Processing Network to Cancel Crossover Interference
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• DTS Neo:X, Dolby® Pro Logic® IIz and Audyssey DSX Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 145 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
  • Front L/R: 145 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 175 W + 175 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 145 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 175 W + 175 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 145 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 175 W + 175 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back L/R: 145 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 175 W + 175 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 400 W (3 ohms, 1 ch)
  • 300 W (4 ohms, 1 ch)
  • 180 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.05% (20 Hz-20 kHz, Rated power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line), 2.5 mV/47 k-ohms (Phono MM)
• Maximum RCA Output Level and Impedance: 5.5 V/470 ohms (Pre out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 110 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)
• Speaker Impedance: 4 Ohms–16 Ohms or 6 Ohms–16 Ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 12.4A
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8" x 7 13/16" x 18 1/4" (435 x 198.5 x 463.5 mm)
• Weight: 55.1 lbs (25.0 kg)
