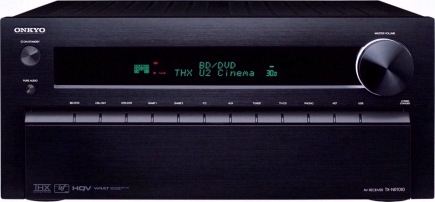

Onkyo TX-NR1010

7.2 Channel Network AV Receiver

The Ultimate Seven-Channel Home Theater Solution

The TX-NR1010 Network A/V Receiver has the power to drive your entertainment to an exhilarating new level. A massive transformer sends power through Three-Stage Inverted Darlington Circuitry to guarantee THX® Ultra2 Plus™-certified audio. Video performance eclipses the competition, with a Dual Core Video Engine upscaling content to 1080p—and upwards to 4K with a compatible display—using HQV®, Qdeo™ and ISF technology. A powerful hub for house-wide entertainment, the unit has nine HDMI® inputs (including frontside MHL™ for smart phones) and two outputs—one with ARC for your main display, another for HD video in a second zone. Multi-room entertainment is streamlined with Onkyo’s remote control apps, while InstaPrevue™ input selection and an HDMI-enabled GUI simplify operation. Whether streaming online music, immersing yourself in an RPG, or experiencing a 3D movie with DTS-HD Master Audio™, reality-shifting surround sound technologies such as Audyssey MultEQ® XT32, DTS Neo:X™, Dolby® Pro Logic® IIz, and Audyssey DSX® place you in the center of the action. For serious users—who will appreciate bi-amping capability, differential DAC mode, and digital crossover processing for bi-wiring audiophile-grade monitors—there is simply no better AVR in its price range.

Special Features

• 9in/2out HDMI Support for 3D Video and Audio Return Channel
• THX Ultra2 Plus Certified
• Network Capability Delivers Internet Radio and Network Streaming
• Dual Core Video Engine w/ HQV Vida and Marvell Qdeo™ Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Zone 2 HDMI Output for HD Video in a Second Zone
• Digital Crossover Processing Network to Cancel Crossover Interference
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• DTS Neo:X, Dolby® Pro Logic® IIz and Audyssey DSX Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
  • Front L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 320 W (3 ohms, 1 ch)
  • 270 W (4 ohms, 1 ch)
  • 160 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.05% (20 Hz-20 kHz, Rated power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line), 2.5 mV/47 k-ohms (Phono MM)
• Maximum RCA Output Level and Impedance: 5.5 V/470 ohms (Pre out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 110 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)
• Speaker Impedance: 4 Ohms–16 Ohms or 6 Ohms–16 Ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 8.6A
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8" x 7 13/16" x 18 1/4" (435 x 198.5 x 463.5 mm)
• Weight: 5o.7 lbs (23.0 kg)
