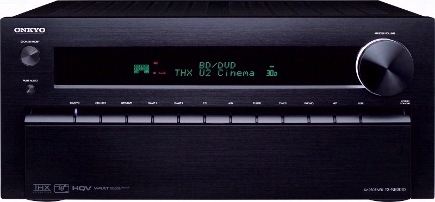

Onkyo TX-NR3010

9.2 Channel Network AV Receiver

Thrill to the Power of Nine-Channel Entertainment

The ultimate hub for house-wide entertainment, the TX-NR3010 can drive audio in three rooms, output high-resolution video on two displays, and stream audio via DLNA—all controlled by your iPhone® or Android-powered phone. With a total of 11 HDMI® ports (including MHL™ for smart phone) and 11.4-channel pre-outs, the home theater setup possibilities are limited only by your imagination. The receiver boasts Audyssey MultEQ® XT32 room correction and three incredible sound expansion systems—DTS Neo:X™, Audyssey DSX®, and Dolby® Pro Logic® IIz—while a combination of Qdeo™, HQV®, and ISF technology upscales and calibrates video sources to 4K resolution. As an audiophile-spec component, the TX-NR3010 features a massive main transformer, additional transformers for audio and video processing, and separated pre-amp and power amp blocks. Audio signals are jitter-cleaned and converted to analog by 192 kHz/24-bit DACs and VLSC™ circuits before passing through the Three-Stage Inverted Darlington Circuitry. The resulting sound quality is awe-inspiring—and with differential DAC mode and digital crossover processing, bi-amping your front monitors results in even higher performance. Easily set up and controlled using the HDMI-enabled user interface, this THX® Ultra2 Plus™-certified receiver is waiting to reignite your passion for music and cinema.

Special Features

• 9in/2out HDMI Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• THX Ultra2 Plus Certified
• Multi-Transformer for Audio, Video, and Digital Processing
• 11.4 Multichannel Pre-Outs
• Network Capability Delivers Internet Radio and Network Streaming
• Dual Core Video Engine w/ HQV Vida and Marvell Qdeo™ Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Zone 2 HDMI Output for HD Video in a Second Zone
• Digital Crossover Processing Network to Cancel Crossover Interference
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• DTS Neo:X, Dolby® Pro Logic® IIz and Audyssey DSX Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC)
  • Front L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back L/R: 140 W (8 ohms, 20 Hz-20 kHz, 0.05%, 2 channels driven, FTC), 170 W + 170 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 320 W (3 ohms, 1 ch)
  • 270 W (4 ohms, 1 ch)
  • 160 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.05% (20 Hz-20 kHz, Rated power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line), 2.5 mV/47 k-ohms (Phono MM)
• Maximum RCA Output Level and Impedance: 5.5 V/470 ohms (Pre out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 110 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)
• Speaker Impedance: 4 Ohms–16 Ohms or 6 Ohms–16 Ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 11.0A
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8" x 7 13/16" x 18 1/4" (435 x 198.5 x 463.5 mm)
• Weight: 55.1 lbs (25.0 kg)
