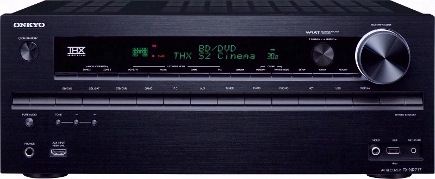

Onkyo TX-NR717

7.2 Channel Network AV Receiver

High Fidelity Entertainment for Your Whole Home

With the power to fill large rooms with THX®-certified sound, this cutting-edge receiver is ready to integrate and distribute entertainment throughout your home. More than a home theater processor, the TX-NR717 allows you to access music on PC, stream from MP3tunes and Spotify, explore online radio, or connect your iPod®/iPhone® to one of two USB ports. You can distribute any of these various stereo sources to other rooms for house-wide entertainment. With a total of 10 HDMI® connections, this receiver converges HD content from all your components—even your smart phone media via a frontside MHL/HDMI—and provides easy input selection with InstaPrevue™ technology. HDMI also enables intuitive GUI with overlaid Quick Set-Up menu. Visually managing settings and playback—even across multiple zones—is easy with the Onkyo Remote App for iPhone and Android phones. Video upscaling to 4K, Audyssey DSX® seven-channel sound expansion, and Audyssey 2EQ® room correction are all included. Sound quality is quite simply the best in class, with powerful WRAT amplifier, three-stage inverted Darlington circuitry, and discrete output stage components delivering an otherworldly entertainment experience.

Special Features

• 8in/2out HDMI Support for 3D Video and Audio Return Channel
• THX Select2 Plus Certified
• Network Capability Delivers Internet Radio and Network Streaming
• Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• Dolby® Pro Logic® IIz and Audyssey DSX Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 125 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Front L/R: 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
  • Center: 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 125 W (6 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
  • Surround L/R: 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
  • Surround Back L/R: 110 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.7%, 2 channels driven, FTC)
• Dynamic Power
  • 250 W (3 ohms, 1 ch)
  • 220 W (4 ohms, 1 ch)
  • 130 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Rated power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line), 2.5 mV/47 k-ohms (Phono MM)
• Output Level and Impedance: 200 mV/470 ohms (Line out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A)
• 80 dB (Phono MM, IHF-A)
• Speaker Impedance: 6 ohms–16 ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 6.8A
• Standby Power Consumption: 0.1W
• Dimensions (W x H x D): 17 1/8" x 6 7/8" x 14 15/16" (435 x 174 x 379 mm)
• Weight: 26.7 lbs (12.1 kg)
