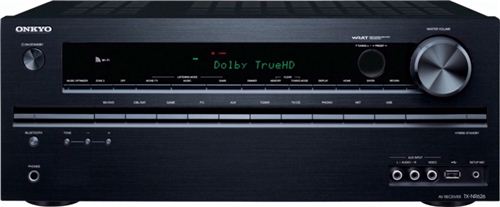

Onkyo TX-NR626 Network AV Receiver

WiFi Bluetooth network AV receiver (95 watt, 7.2 channel)

A Winning Combination for Music and Movie Fans

Our TX-NR626 delivers a knockout punch of value and performance. On the value side, you get built-in Wi-Fi and Bluetooth audio streaming technology. You can stream hi-res, lossless, and compressed formats from smartphone, tablet, PC, and NAS using our remote app for music selection and playback. The receiver also comes with app-controllable internet radio and music streaming services, so you’ll never be short of music. On the performance side, six HDMI® inputs and two ARC-enabled outputs support 4K and 3D passthrough, with lower resolution video upscaled to 1080p on regular HDTVs (4K on compatible displays) using Qdeo™ processing technology. An MHL™ port handles hi-res video from smartphone and tablet, and there’s a USB for audio playback from flash memory drive. Discrete WRAT amplifiers and Three-Stage Inverted Darlington Circuitry for the front and center channels deliver breathtaking surround sound, while MultEQ® from Audyssey ensures your speakers and subwoofers are calibrated for optimum response. You can even bi-amp your front monitors and drive audio in a second zone. Powerful, easy to use, and packed with convenient technology, the TX-NR626 is unbeatable at this pricepoint.

Special Features

• Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
• 6in/1out HDMI Support for 3D Video and Audio Return Channel
• HDMI® Video Upscaling to 4K with Qdeo™ Technology by Marvell
• 4K Passthrough from Compatible Source Devices via HDMI
• Built-in Wi-Fi-Certified Wireless LAN Capability
• Onboard Bluetooth Audio Streaming Technology
• Network Capability Delivers Internet Radio and Network Streaming
• Rearside MHL™ for 1080p Video and Stills from Smartphone and Tablet
• Picture-in-Picture Input Video Preview with InstaPrevue™ Technology
• Supports Onkyo Remote Apps for iPod touch®/iPhone® and Android-Powered Devices
• Dolby® Pro Logic® IIz Upmixing for Seven-Channel Surround Sound
• Audyssey MultEQ® for Room Acoustic Correction

Product Specifications

• Power Output:
  • All Channels--115 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Front L/R--95 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 115 W (6 ohms, 1 kHz, 0.7% THD, 2 channels driven)
  • Center--95 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 115 W (6 ohms, 1 kHz, 0.7% THD, 2 channels driven),
  • Surround L/R --95 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 115 W (6 ohms, 1 kHz, 0.7% THD, 2 channels driven)
  • Surround Back L/R--95 W (8 ohms, 20 Hz-20 kHz, 0.08%, 2 channels driven, FTC), 115 W (6 ohms, 1 kHz, 0.7% THD, 2 channels driven)
• Dynamic Power: 240 W (3 ohms, Front), 210 W (4 ohms, 1 Front), 120 W (8 ohms, Front)
• THD+N (Total Harmonic Distortion + Noise):  0.08% (20 Hz-20 kHz, Half power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line), 2.5 mV/47 k-ohms (Line)
• Rated RCA Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)
• Maximum RCA Output Level and Impedance: 2.0 V/2.2 k-ohms (Line Out)
• Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
• Frequency Response:  5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
• Tone Control:  ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A), 80 dB (Phono MM, IHF-A)
• Speaker Impedance:  6 ohms–16 ohms
• FM/AM Preset Memory : 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply : AC 120 V, 60 Hz
• Power Consumption:  6.3A
• No-Sound Power Consumption:  85W
• Standby Power Consumption:  0.15W
• Dimensions (W x H x D): 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
• Weight :  21.6 lbs (9.8 kg)
