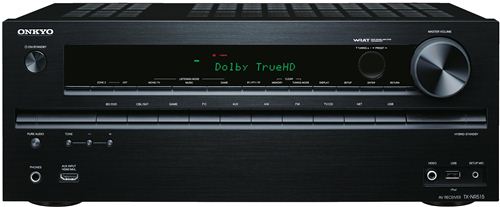

Onkyo TX-NR515

7.2 Channel Network AV Receiver

Feature-Loaded Network Receiver Offers Maximum Value for Money

The TX-NR515 receiver checks every box on your home theater wishlist. In fact, we’ve over-delivered. Our acclaimed WRAT amplifier delivers room-filling sound through 7.2 channels with Dolby® Pro Logic® IIz expansion. Audyssey’s 2EQ, Dynamic Volume®, and Dynamic EQ® systems are standard. A class-leading eight HDMI® inputs handle Dolby® TrueHD and Dolby DTS-HD Master Audio™, the latest games, and 3D movies; the front-panel HDMI Mobile High-Definition Link displays 1080p smartphone content; there are two HDMI outputs for connection of a TV and a movie projector; and Marvell’s Qdeo™ technology upscales video to an astonishing 4K (4096 x 2160 pixels). Want music? There’s home networking for playback of your multi-format PC-based library, and full integration of cloud streaming and internet radio services. You can connect your iPod®, iPhone®, or flash drive via USB and select tracks with the supplied remote controller. Input selection with InstaPrevue™ technology, overlaid OSD, multi-zone capability, and system control using iPod touch/iPhone and Android phone are all included. With the TX-NR515, the only thing missing is a hefty price tag.

Special Features

• 8in/2out HDMI Support for 3D Video and Audio Return Channel
• Network Capability Delivers Internet Radio and Network Streaming
• Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 100 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Front L/R: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back L/R: 80 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 180 W (3 ohms, 1 ch)
  • 160 W (4 ohms, 1 ch)
  • 100 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)
• Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
• Tone Control: ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 100 dB (Line, IHF-A)
• Speaker Impedance: 6 ohms–16 ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 5.0A
• Standby Power Consumption   0.15W
• Dimensions (W x H x D): 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
• Weight: 19.8 lbs (9.0 kg)
