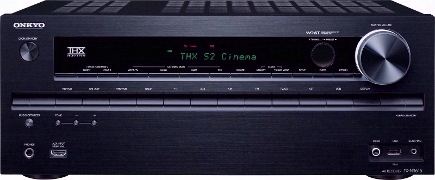

Onkyo TX-NR616

7.2 Channel Network AV Receiver

Escape into THX®-Certified Surround Sound

Movie, music, and gaming enthusiasts can now step up to realistic THX® Select2 Plus™-certified surround sound for less money down with the new TX-NR616 Network A/V Receiver. Onkyo’s acclaimed WRAT amplifier with three-stage inverted Darlington circuitry delivers cinema-like power in the home . With Audyssey DSX™ expansion, you can add extra Height channels for more enveloping surround sound, while 2EQ acoustic cor rection guarantees optimal performance in any room. Eight HDMI® inputs handle 3D content, HD audio, and video display upscaled to 4K with onboard Qdeo™ technology. The MHL/HDMI input lets you connect a smart phone for smooth 1080p playback on your TV. Wireless home networking, meanwhile, opens up an exciting world of internet radio and cloud-based music streaming. You can even enjoy your multi-format PC-based music collection over Wi-Fi with an optional USB adapter. Intuitive system control—including audio distribution in m ultiple rooms—is provided by Onkyo’s remote apps for iPod touch®/iPhone® and Android phone, or press the Quick Set-Up button on the supplied remote for instant mid-program adjustments. Visual input selection with InstaPrevue™ technology rounds out what is an exceptionally refined and affordable THX receiver.

Special Features

• 8in/2out HDMI Support for 3D Video and Audio Return Channel
• THX Select2 Plus Certified
• Network Capability Delivers Internet Radio and Network Streaming
• Marvell Qdeo™ Video Chip for 4K Upscaling and Processing
• MHL™ (Mobile High-Definition Link) for Smart Phone Content on HDTV
• Picture-in-Picture Input Source Preview with InstaPrevue™ Technology
• Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
• Onkyo Remote App for iPod/iPhone
• Dolby® Pro Logic® IIz Add New Dimensions to Surround Sound
• Hybrid Standby Function to Reduce Power Consumption

Product Specifications

• Power Output
  • All Channels: 115 W (6 ohms, 1 kHz, 0.7%, 2 channels driven)
  • Front L/R: 100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Center: 100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround L/R: 100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC)
  • 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
  • Surround Back L/R: 100 W (8 ohms, 20 Hz-20 kHz, 0.7%, 2 channels driven, FTC), 125 W + 125 W (6 ohms, 1 kHz, 0.1%, 2 channels driven, FTC)
• Dynamic Power
  • 240 W (3 ohms, 1 ch)
  • 210 W (4 ohms, 1 ch)
  • 120 W (8 ohms, 1 ch)
• THD+N (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half power)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)
• Output Level and Impedance: 200 mV/2.2 k-ohms (Rec out)
• Frequency Response: 5 Hz-100 kHz/+1 dB, -3 dB (DSP bypass)
• Tone Control:  ±10 dB, 50 Hz (Bass), ±10 dB, 20 kHz (Treble)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A)
• Speaker Impedance: 6 ohms–16 ohms
• FM/AM Preset Memory: 40 stations

Integration Access

• RS-232
• IR Input
• Ethernet
• ONKYO-RI System Control
• 12V Trigger

General

• Warranty: 2 YEARS
• Power Supply: AC 120 V, 60 Hz
• Power Consumption: 6.3A
• Standby Power Consumption: 0.15W
• Dimensions (W x H x D): 17 1/8" x 6 13/16" x 12 15/16" (435 x 173.5 x 328 mm)
• Weight: 24.3 lbs (11.0 kg)
